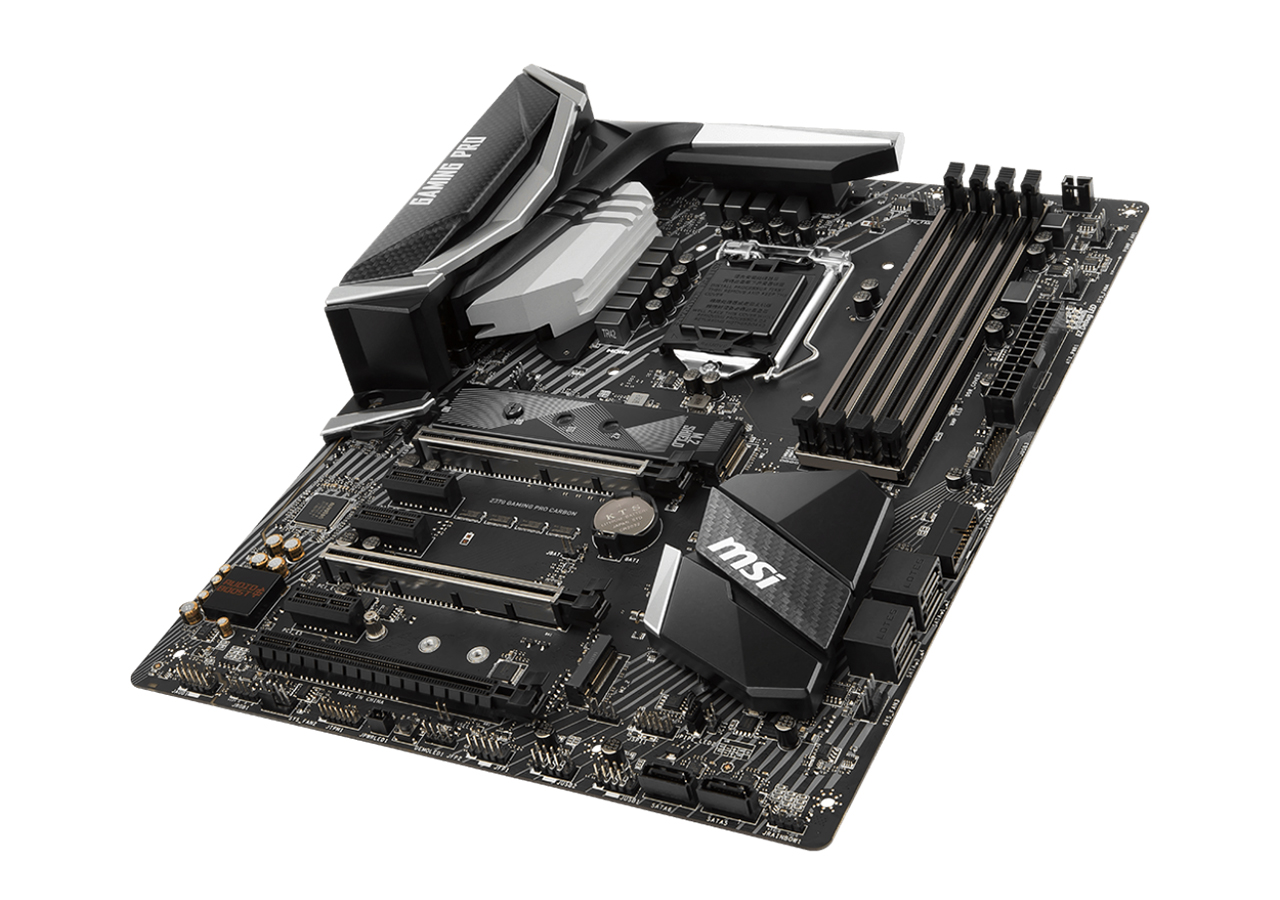

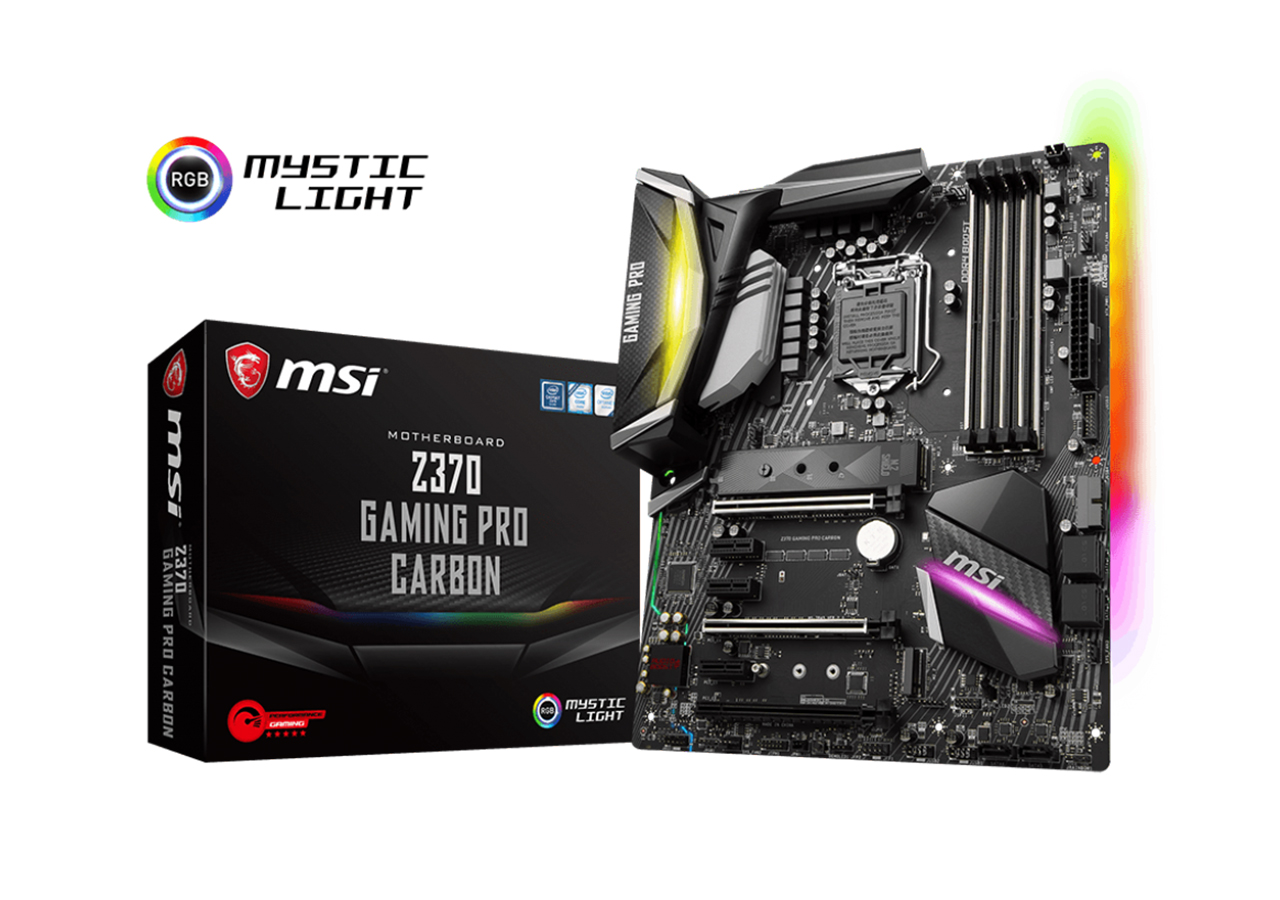

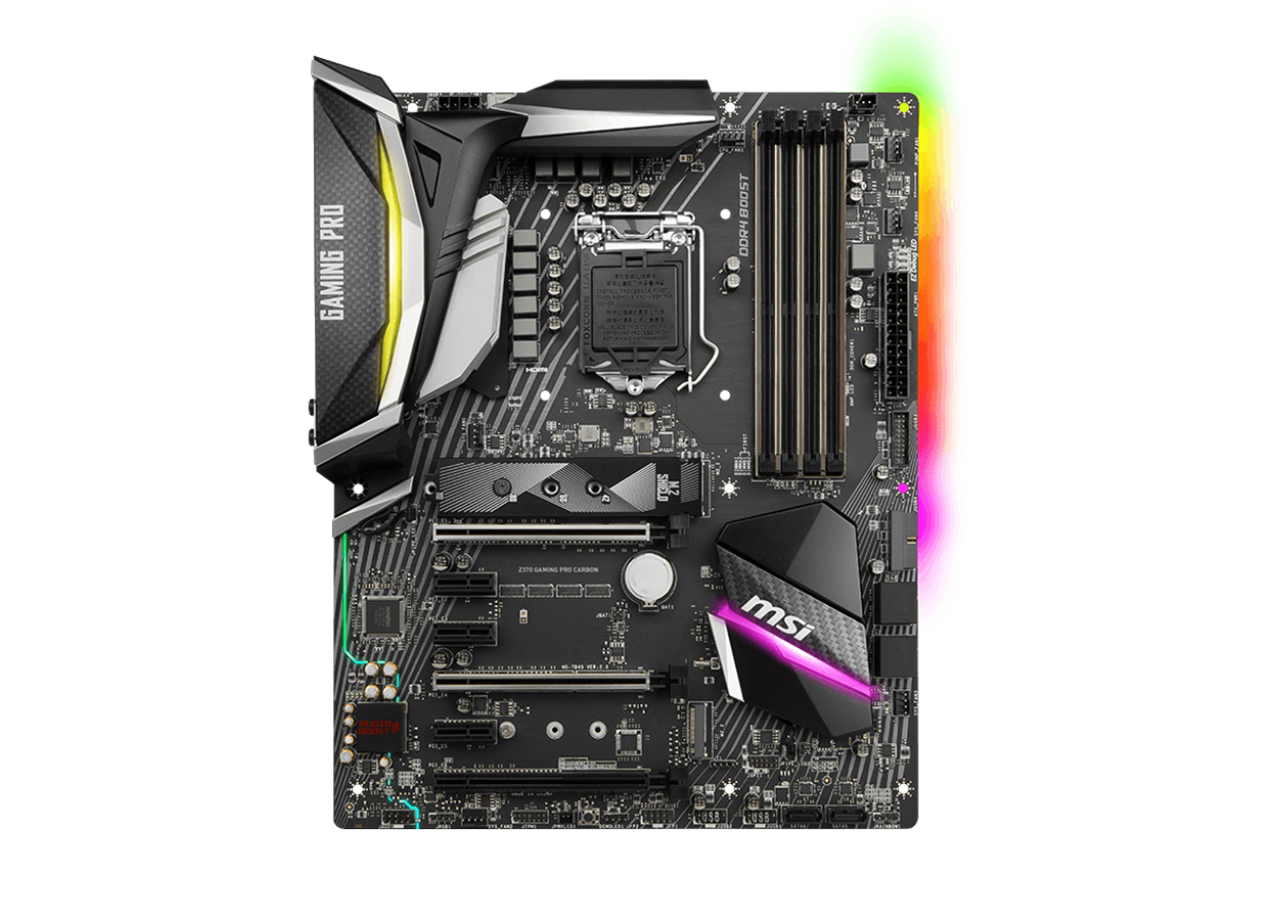

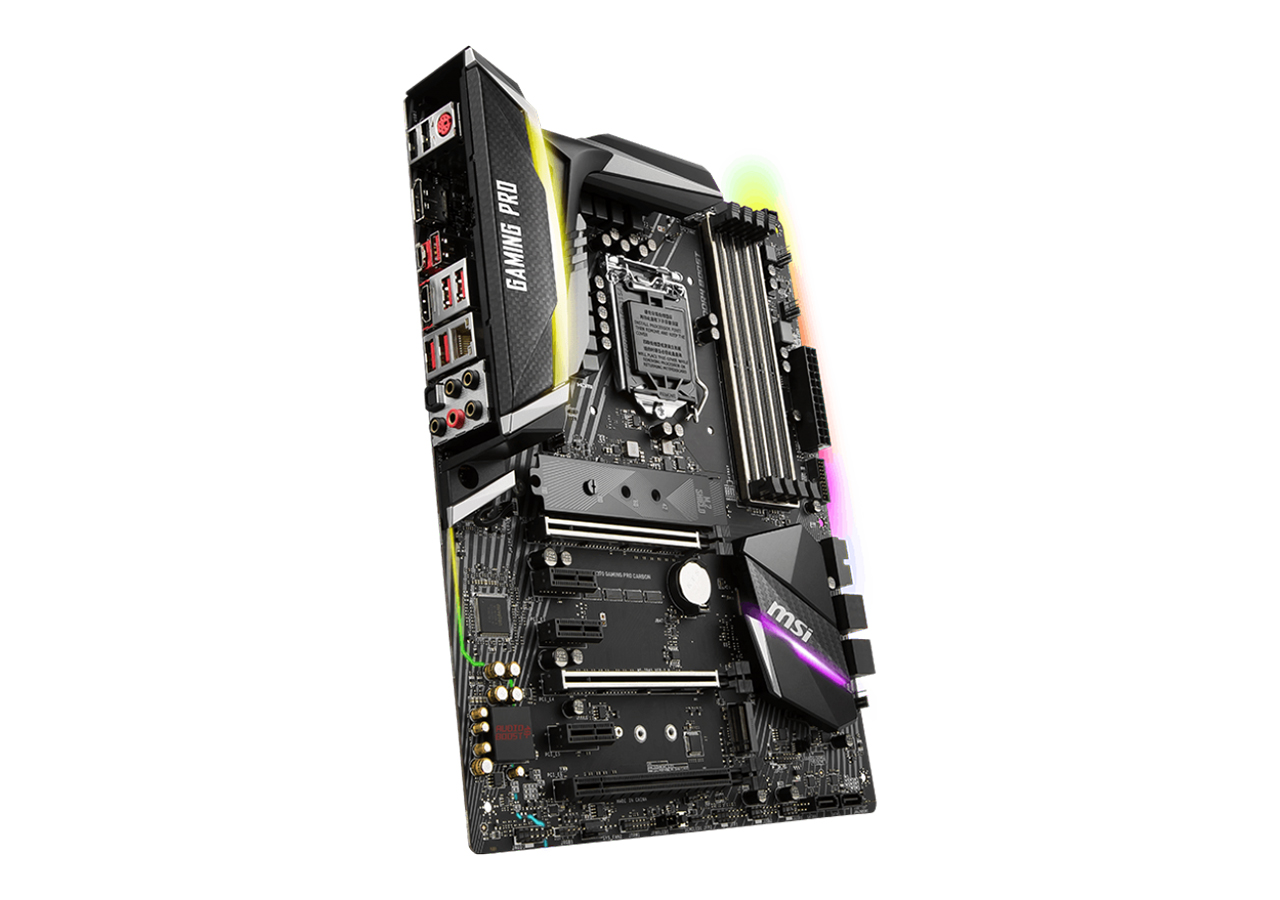

MSI Z370 Gaming Pro Carbon

Card đồ hoạ: - Hỗ trợ công nghệ đồ hoạ AMD CrossFire 3 chiều
- Hỗ trợ công nghệ đồ hoạ NVIDIA SLI 2 chiều

Bộ nhớ trong: - 6 x cổng SATA 6 Gb/s, hỗ trợ Raid 0, 1, 5, 10
- 3 x cổng M.2 slots, hỗ trợ Raid 0, 1
PCIe 3.0 x 4 NVMe U.2 SSD
PCIe 3.0 x 4 and SATA 6Gb/s
M2_1, M2_3 slots (hỗ trợ 2242/2260/2280/ 22110 storage devices)
M2_2 slot (hỗ trợ 2242/ 2260/2280 storage devices)
Intel Optane Memory Ready M.2

RAM: - 4 x DDR4 , hỗ trợ tối đa 64 GB
- Hỗ trợ 4000+ (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 ( OC)/2800 (OC)/2667/2400/2133 MHz
- Kiến trúc bộ nhớ kênh đôi
- Hỗ trợ non-ECC, un-buffered
- Hỗ trợ Intel Extreme Memory Profile (XMP)

Đặc điểm âm thanh: - Realtek ALC1220 Codec
- 7.1-Channel High Definition Audio

Kết nối I/O bên trong: - 3 x PCIe 3.0 x16
- 3 x PCIe 3.0 x1
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (hỗ trợ additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (hỗ trợ additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 2 x 5050 RGB LED strip 12V connectors
- 1 x WS2812B Individually Addressable RGB LED strip 5V connector
- 1 x CORSAIR Individually Addressable RGB LED strip 5V connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

USB: - ASMedia ASM3142: 2 x 3.1 Gen2
- ASMedia ASM1074: 4 x 3.1
- Intel Z370 Chipset:
8 x 3.1 Gen1
6 x 2.0

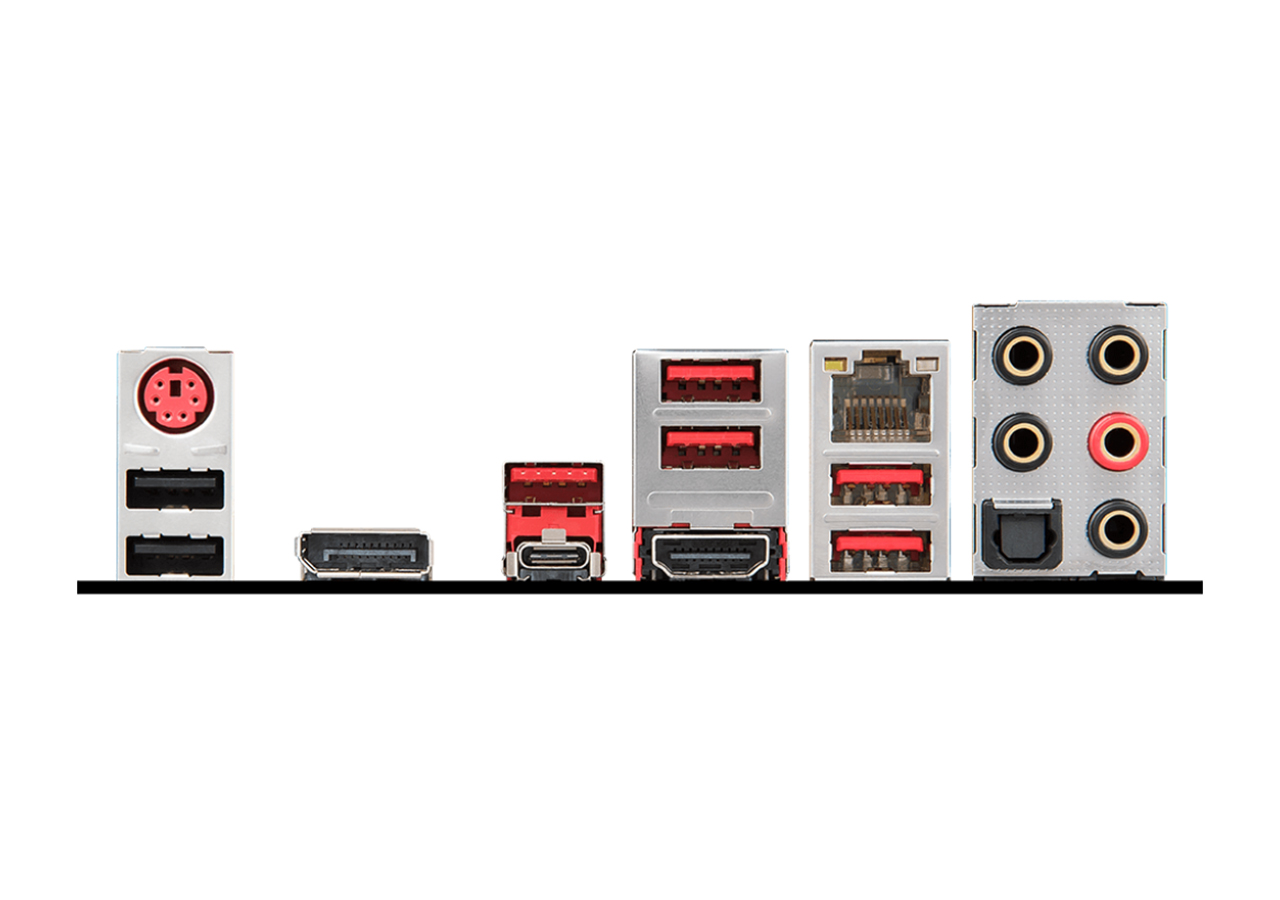

Kết nối khác: - Bàn phím/chuột
- DisplayPort 1.2
- Optical S/PDIF-Out
- Golden Audio Connectors
