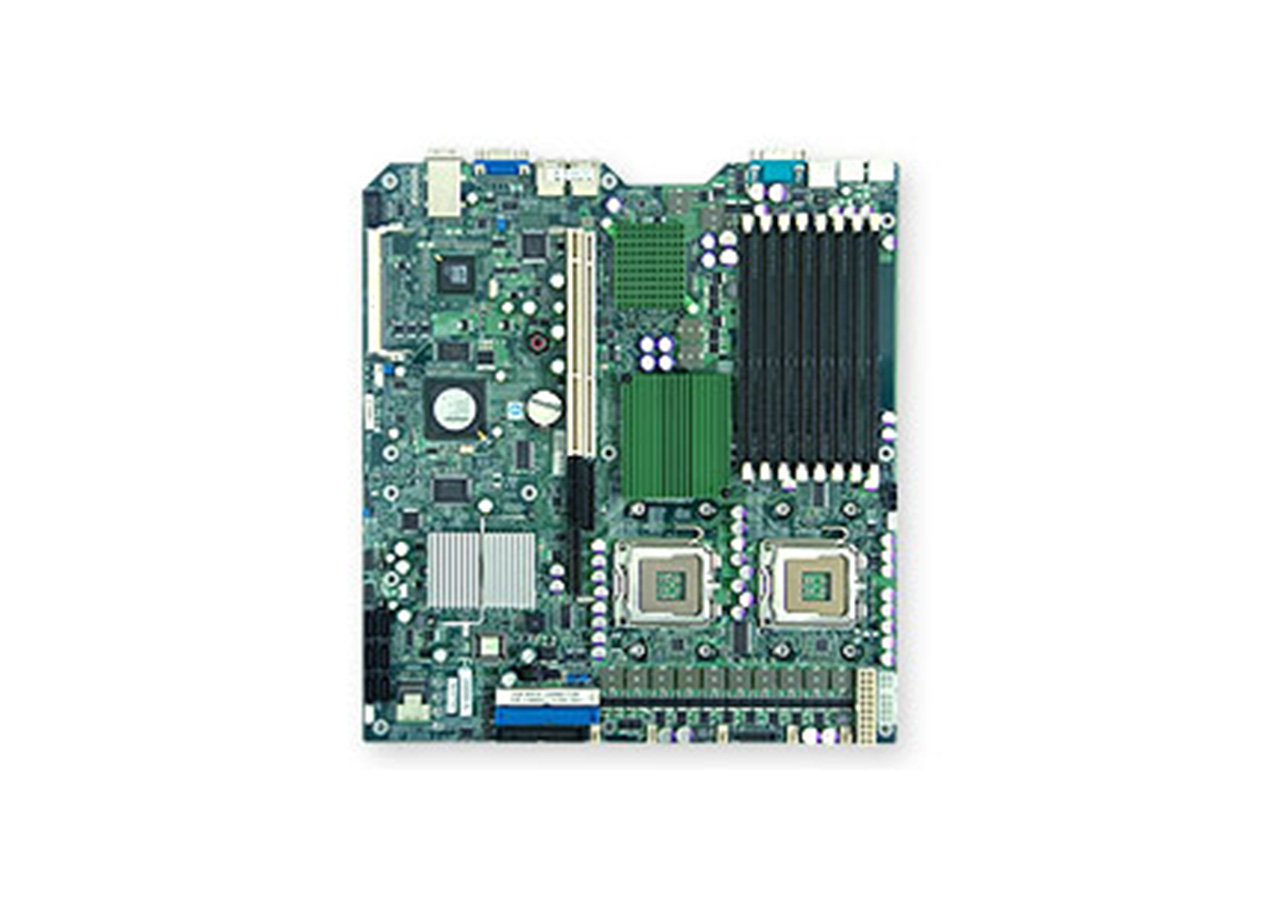

Supermicro X7DBR-3

Đặc điểm CPU: - Dual 771-pin LGA Sockets
- Hỗ trợ tối đa Dual Intel 64-bit Xeon:
+ Quad-Core Intel Xeon 5400/5300 sequence (Harpertown
/Clovertown processor) lên đến 3.16 GHz
+ Dual-Core Intel Xeon
5200/5100/5000 sequence (Wolfdale/Woodcrest processor) lên đến 3.40 GHz

RAM: - 8 x 240-pin DIMM sockets
- Hỗ trợ tối đa 32 GB 667 / 533MHz DDR2 ECC FB-DIMM
- Dual branch memory bus
- Memory must be populated in pairs
- Hỗ trợ Memory Mirroring

Kết nối I/O bên trong: - 8 x SAS / SATA ports (4 internal, 4 external)
- Dual-Channel SAS controller
- 8 x SAS / SATA hard drives
- 6 x Serial ATA ports
- 3 Gbps transfer rate
- 6 x SATA hard drives
- Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
- Compact Flash (40-pin connector, IDE 1, single channel) slot
- Hỗ trợ UDMA Mode 5, PIO Mode 4, and ATA/100
- 1 x Floppy controller; 1.44 MB, 2.88 MB

USB: - 2 x USB rear ports
- 3 x USB internal headers
- 5 x USB 2.0 Compliant / 1.1 Compliant

Kết nối khác: - 1 x VGA Port
- PS/2 keyboard and mouse ports
- 1 x Fast UART 16550 serial port
- 1 x Fast UART 16550 serial header
- 1 x 64-bit 133MHz PCI-X OR
- 1 x (x8) PCI-e Slot
- 1 x 64-bit 133MHz PCI-X OR
- 2 x (x8) PCI-e Slots OR
- 3 x 64-bit 133MHz PCI-X
- 1 x (x8) PCI-e Slot (For 2U Only)
