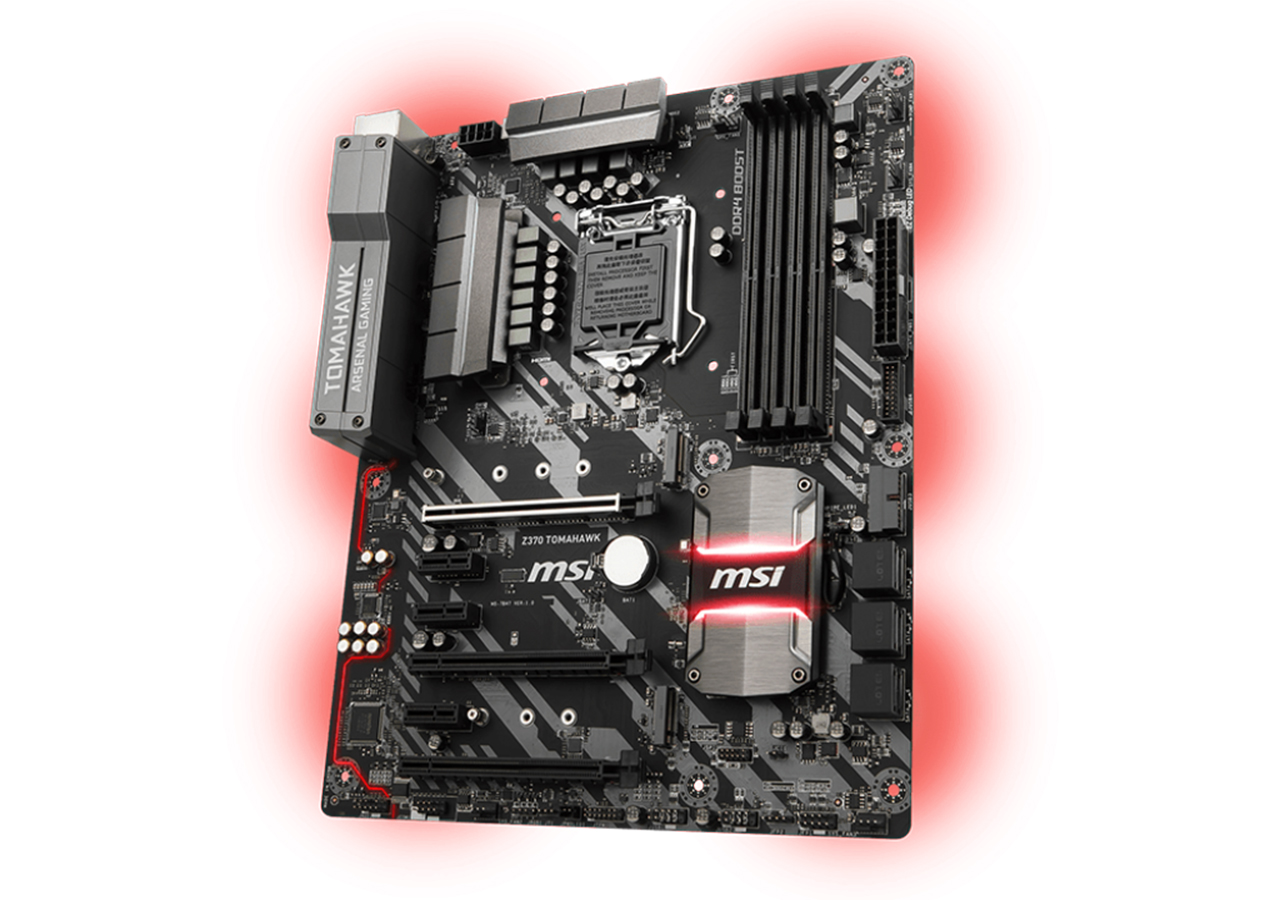

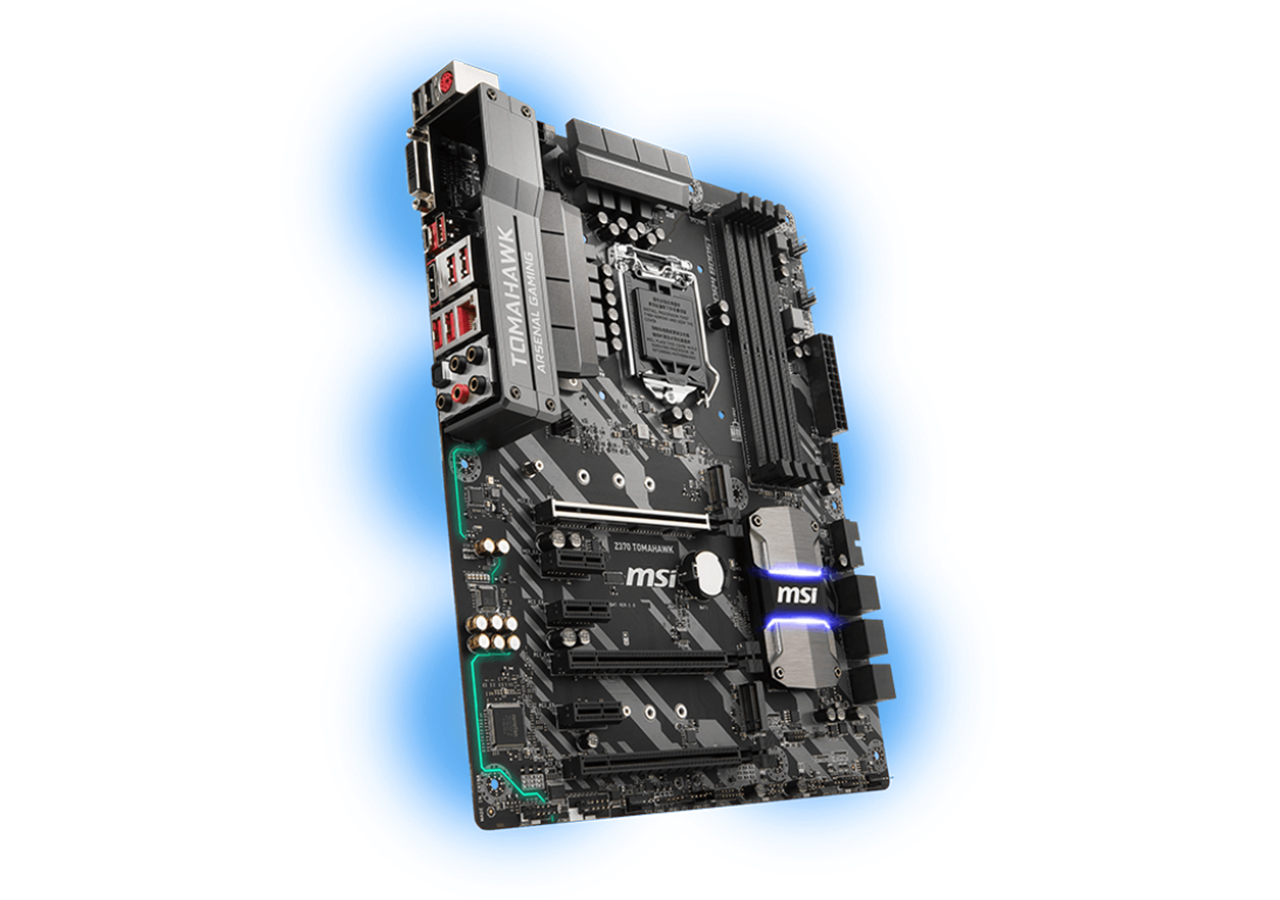

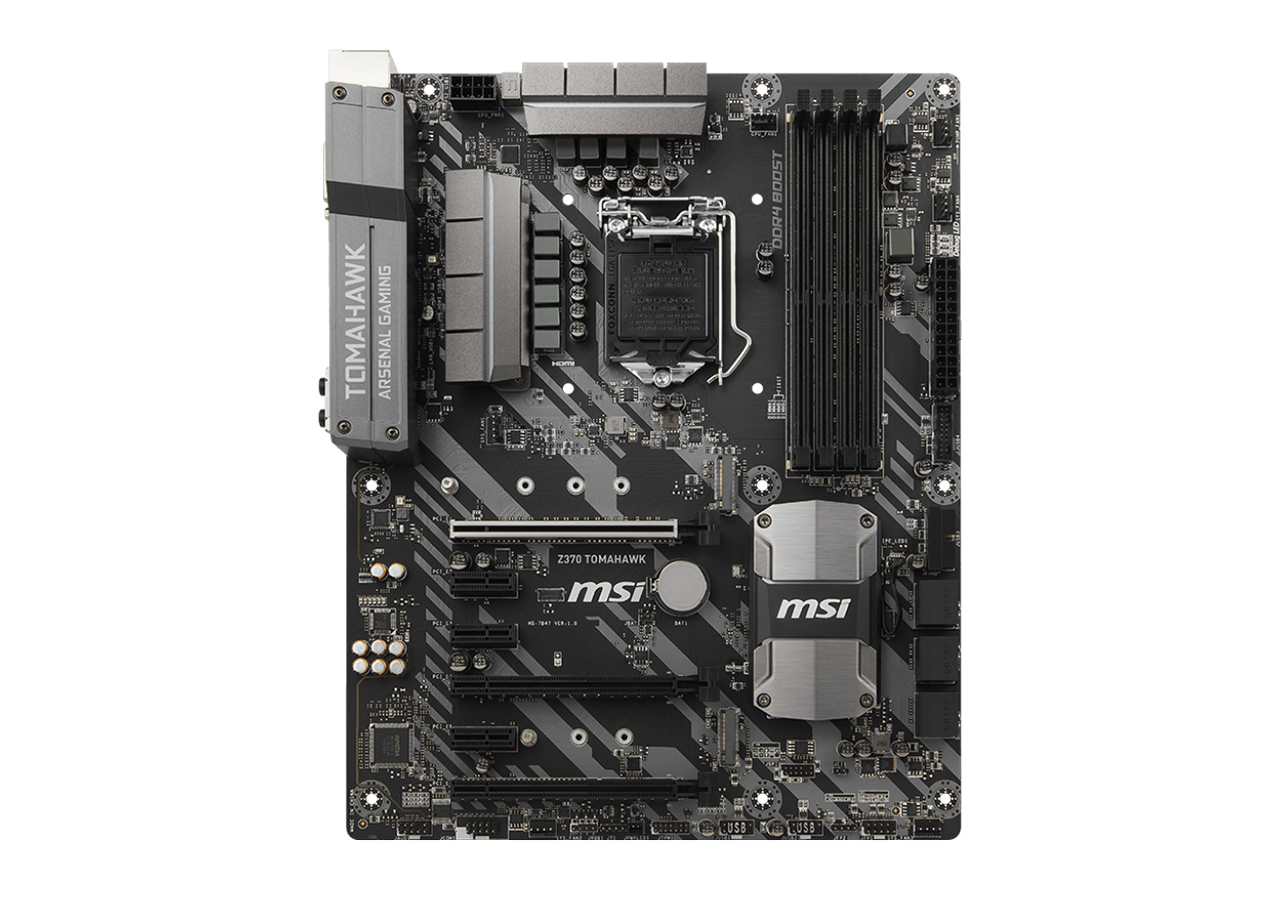

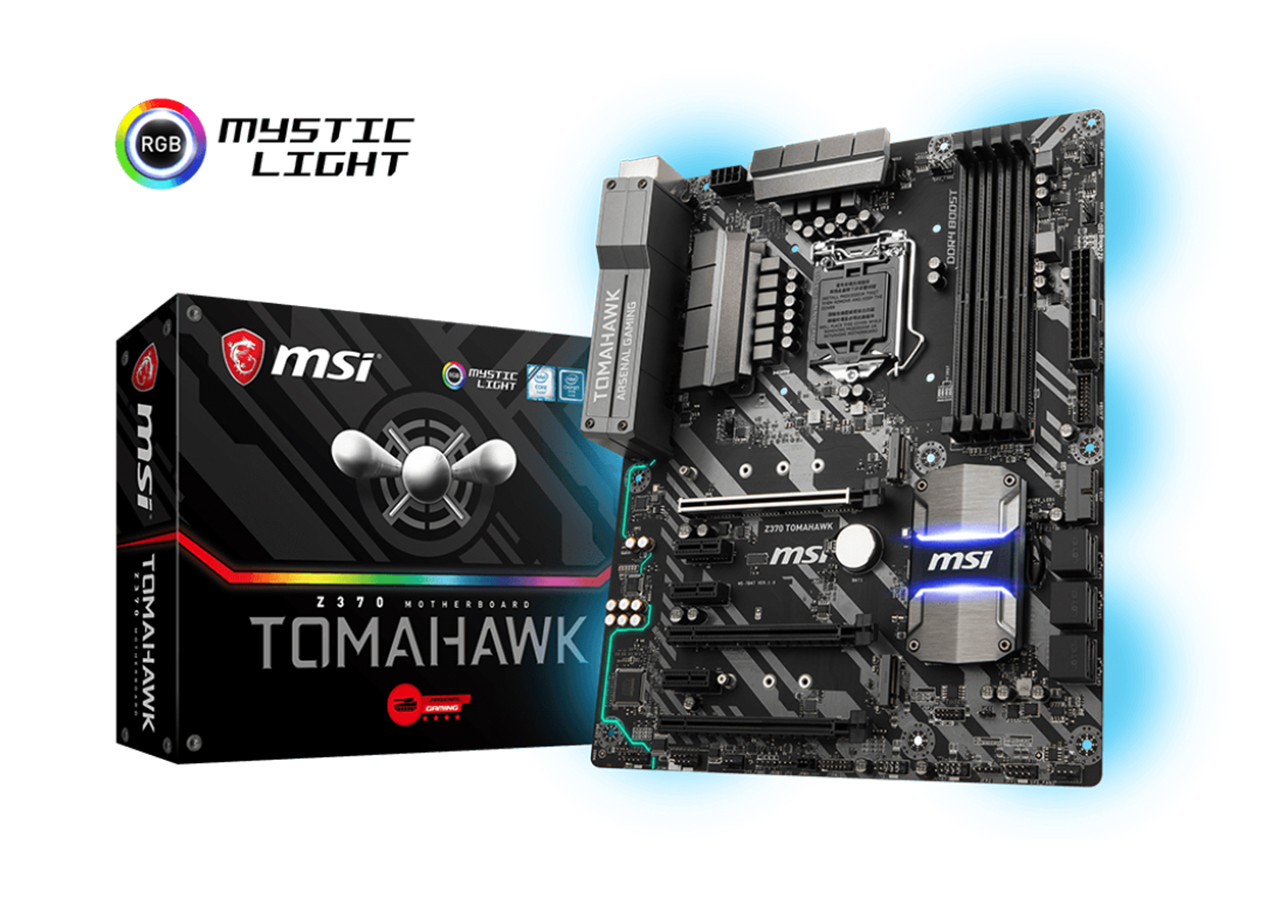

MSI Z370 Tomahawk

Bộ nhớ trong: - 6 x cổng SATA 6 Gb/s, hỗ trợ Raid 0, 1, 5, 10
- 2 x cổng M.2 slots, hỗ trợ Raid 0, 1
Hỗc trợ PCIe 3.0 x4 and SATA 6Gb/s
Hỗ trợ PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card2
M2_1 slot hỗ trợ 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot hỗ trợ 2242/ 2260 /2280 storage devices2
Intel Optane Memory Ready for all M.23
- Hỗ trợ Intel Smart Response Technology for Intel Core processors

RAM: - 4 x DDR4, hỗ trợ tối đa 64 GB
- Hỗ trợ DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz
- Kiến trúc bộ nhớ kênh đôi
- Hỗ trợ non-ECC, un-buffered
- Hỗ trợ Intel Extreme Memory Profile (XMP)

Đặc điểm âm thanh: - Realtek ALC892 Codec
- 7.1-Channel High Definition Audio

Kết nối I/O bên trong: - 2 x PCIe 3.0 x1
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (hỗ trợ additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (hỗ trợ additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Clear CMOS jumper

USB: - ASMedia ASM3142: 2 x 3.1 Gen2
- Intel Z270 Chipset:
8 x 3.1 Gen1
6 x 2.0

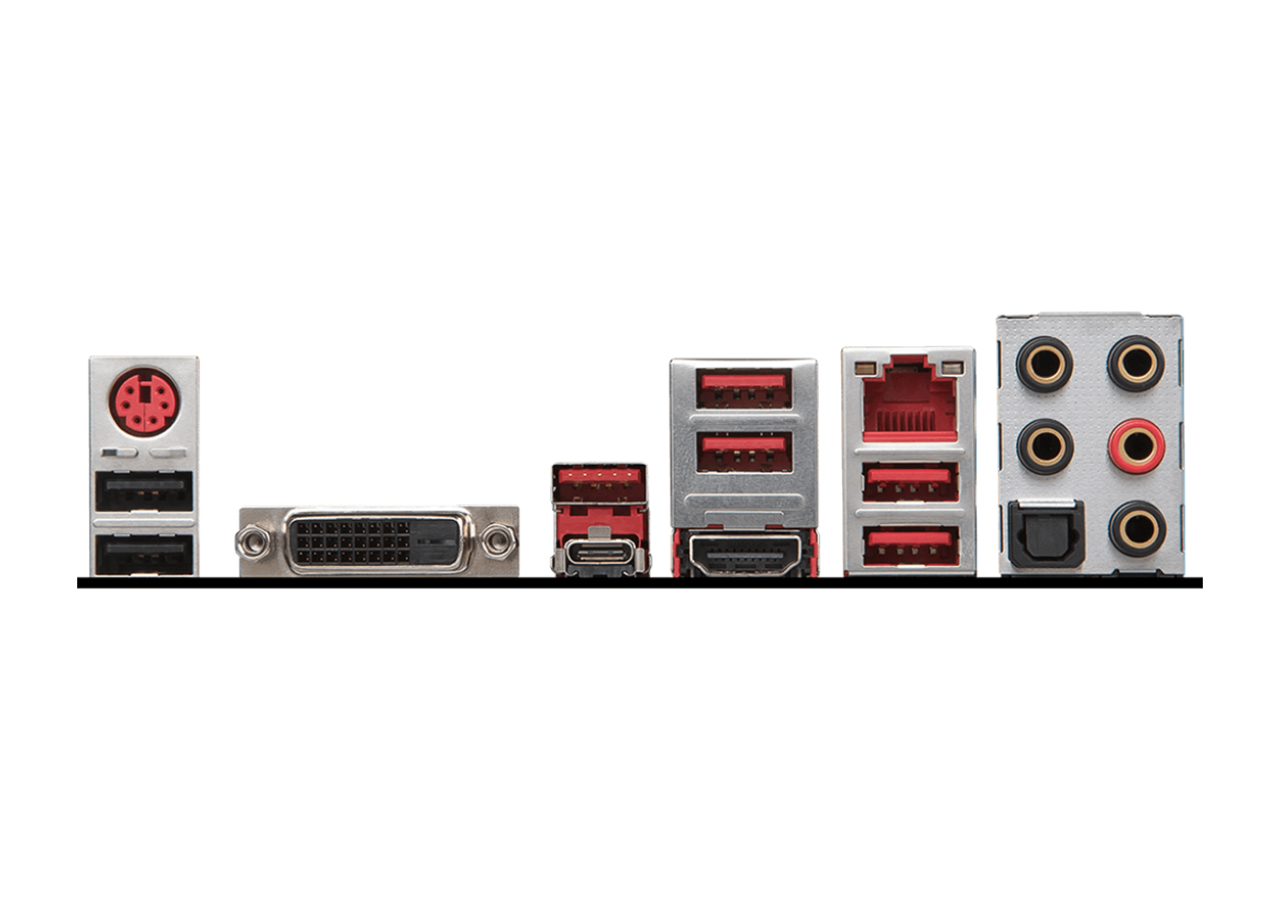

Kết nối khác: - Bàn phím/chuột
- DVI-D
- Optical S/PDIF-Out
- Golden Audio Connectors
