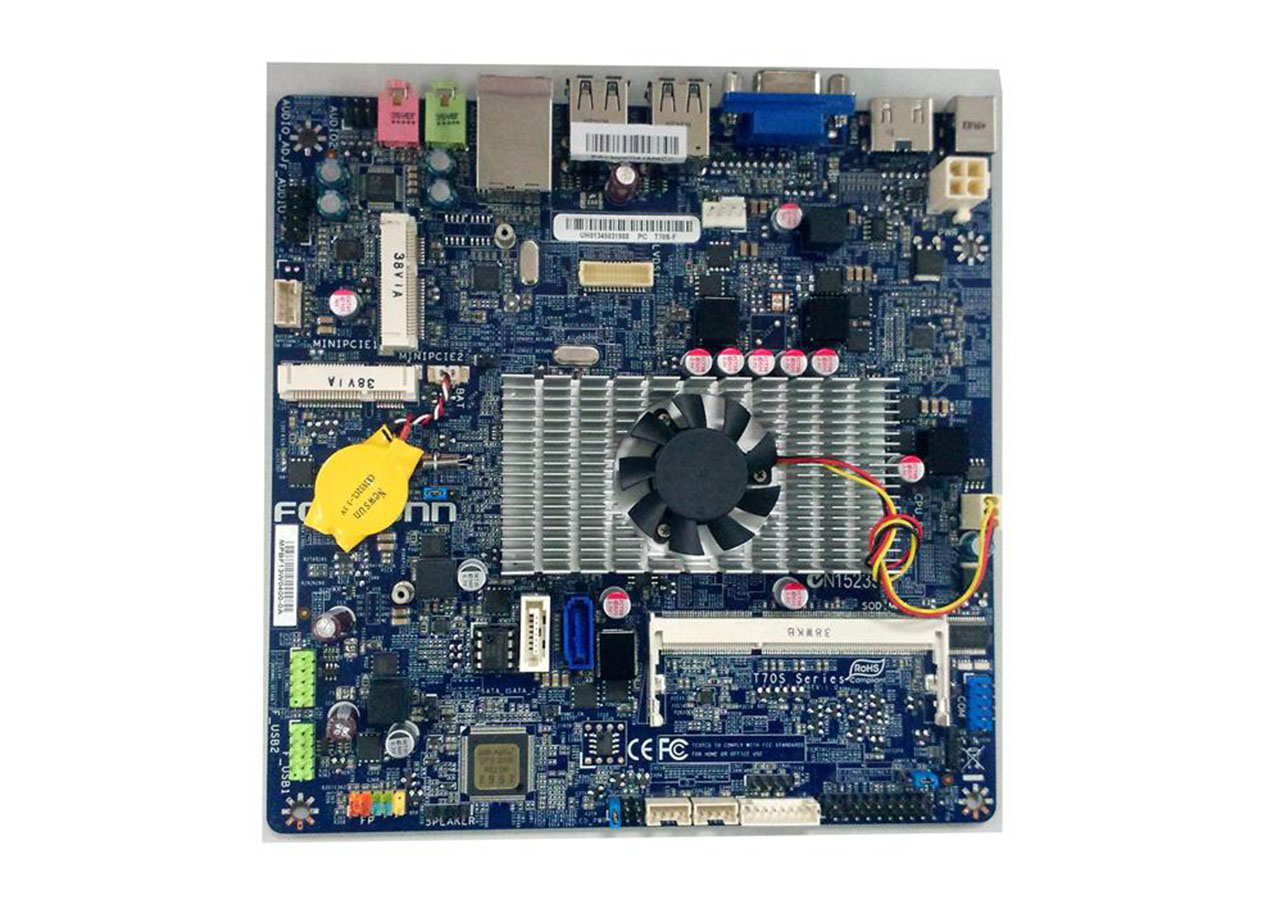

Foxconn T70S-F

LAN

Realtek GigaLan

Kết nối I/O bên trong

- 1 x mini PCIe slot (full size)
- 1 x mini PCIe slot (half size)
- 2 x 4-pin CPU/SYS FAN
- 1 x Front pannel header
- 1 x Series header
- 1 x SATA2 connector
- 1 x SATA3 connector
- 2 x 4-Pin SATA Power 12V-5V-3V header
- 1 x Front Audio header
- 1 x 4-Pin Internal Speaker header
- 1 x 30-Pin (2x15) LVDS header
- 1 x LED Switch Conn
- 1 x Panel Voltage Selection CONN
- 1 x Backlight Inverter Voltage selection Conn
- 1 x Aduio Voltage Selection CONN
- 1 x CLR_CMOS header
- 1 x TPM header
- 1 x INTR header
- 1 x Mouse header
- 1 x Keyboard header

USB

- 2 x USB 2.0 headers (2*5Pin)
- 4 x USB 2.0 ports

Kết nối khác

- 1 x 19V DC-IN powerport
- 1 x HDMI port
- 1 x VGA port
- 1 x RJ45 port
- 1 x Microphone port
- 1 x Speaker port
