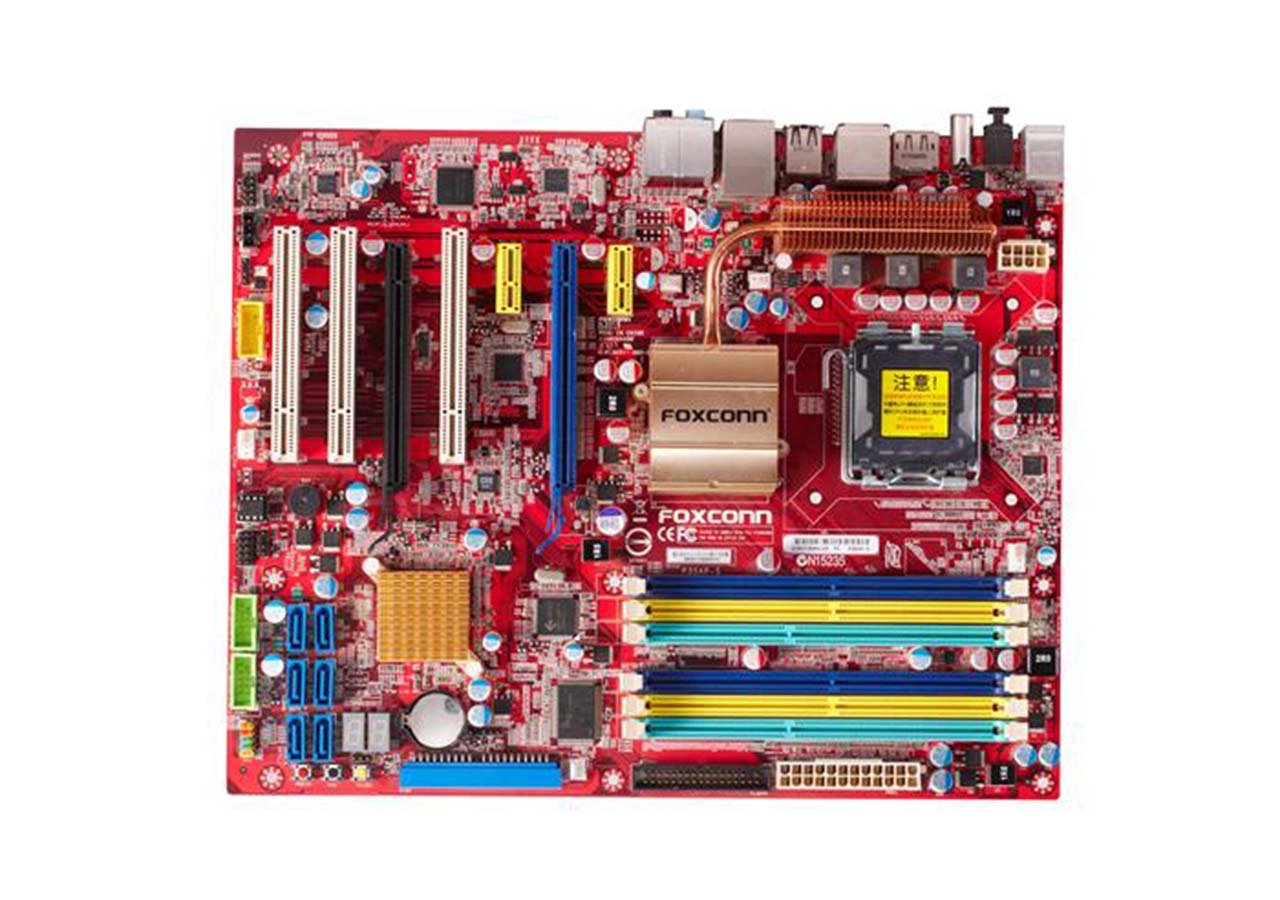

Foxconn P35AP-S

Đặc điểm CPU: - Intel Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium Dual-Core, Pentium D, Pentium 4, Celeron
- Socket T (LGA775)
- Hỗ trợ Intel next generation 45nm Multi-Core

RAM: - Dual Channel DDR2 1066(oc**) / 800 / 667 x 4 DIMMs
- Hỗ trợ tối đa 8 GB
- DDR3 1333(oc**) / 1066 / 800 x2 DIMMs
- Hỗ trợ tối đa 4 GB

Kết nối I/O bên trong: - 2 x PCIe x16
- 2 x PCIe x1
- 3 x PCI
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU / System / Chipset FAN connectors
- 1 x CD-in connector
- 1 x Front Audio header
- 1 x IRDA
- 1 x Speaker
- 1 x Floppy connector
- 1 x COM header (Reserved)
- 1 x LED Debug port
- 1 x Front Panel connector

- 6 x SATAII connectors
- 1 x Intruder
- 1 x on-board power_LED
- 1 x IEEE1394 connector supports additional one port
- 1 x Buzzer
- 1 x IDE connector
- 3 x on-board Buttons (On/off, Clear CMOS and Reset)

USB: - 2 x USB 2.0 connectors support additional 4 ports
- 4 x USB 2.0 ports

Kết nối khác: - 1 x set 7.1 channel Audio jacks (6 jacks)
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x S/PDIF Out Coaxial
- 1 x S/PDIF Out Fiber
- 1 x Foxconn Digital connector
- 2 x eSATA
- 1 x RJ45 LAN port
- 1 x IEEE1394 port
