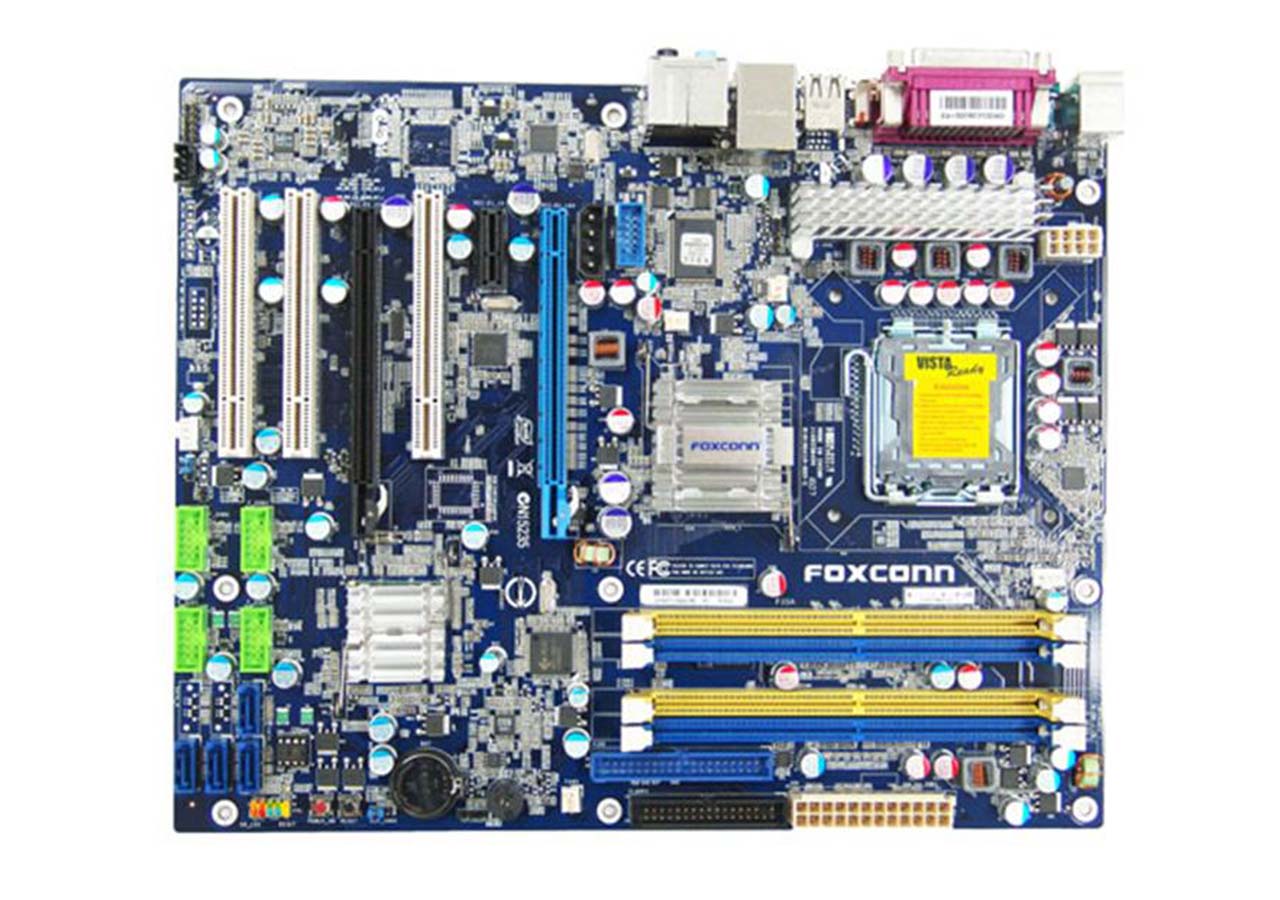

Foxconn P35A

Đặc điểm CPU: - Intel Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium Dual-Core, Pentium D, Pentium 4, Celeron
- Socket T (LGA775)
- Hỗ trợ Intel next generation 45nm Multi-Core

Kết nối I/O bên trong: - 2 x PCIe x16(run x16 + x4 mode, support dual graphics card technology)
- 1 x PCIe x1
- 3 x PCI
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU / System FAN connectors
- 1 x CD-in connector
- 1 x Front Audio header
- 1 x BIOS Write Protect header
- 1 x IRDA
- 1 x Speaker
- 1 x Front Panel connector
- 2 x On-baord switches
- 6 x SATAII connectors
- 1 x Intruder
- 1 x COM header
- 1 x on-board Power LED

USB: - 4 x USB 2.0 ports
- 4 x USB 2.0 connectors support additional 8 ports

Kết nối khác: - 1 x Parallel port
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x S/PDIF Out Coaxial
- 1 x Audio Jack supports 6 jacks
- 1 x eSATA
- 4 x USB 2.0 ports
- 1 x RJ45 LAN port
- 2 x on-board Buttons (On/off and Reset)
