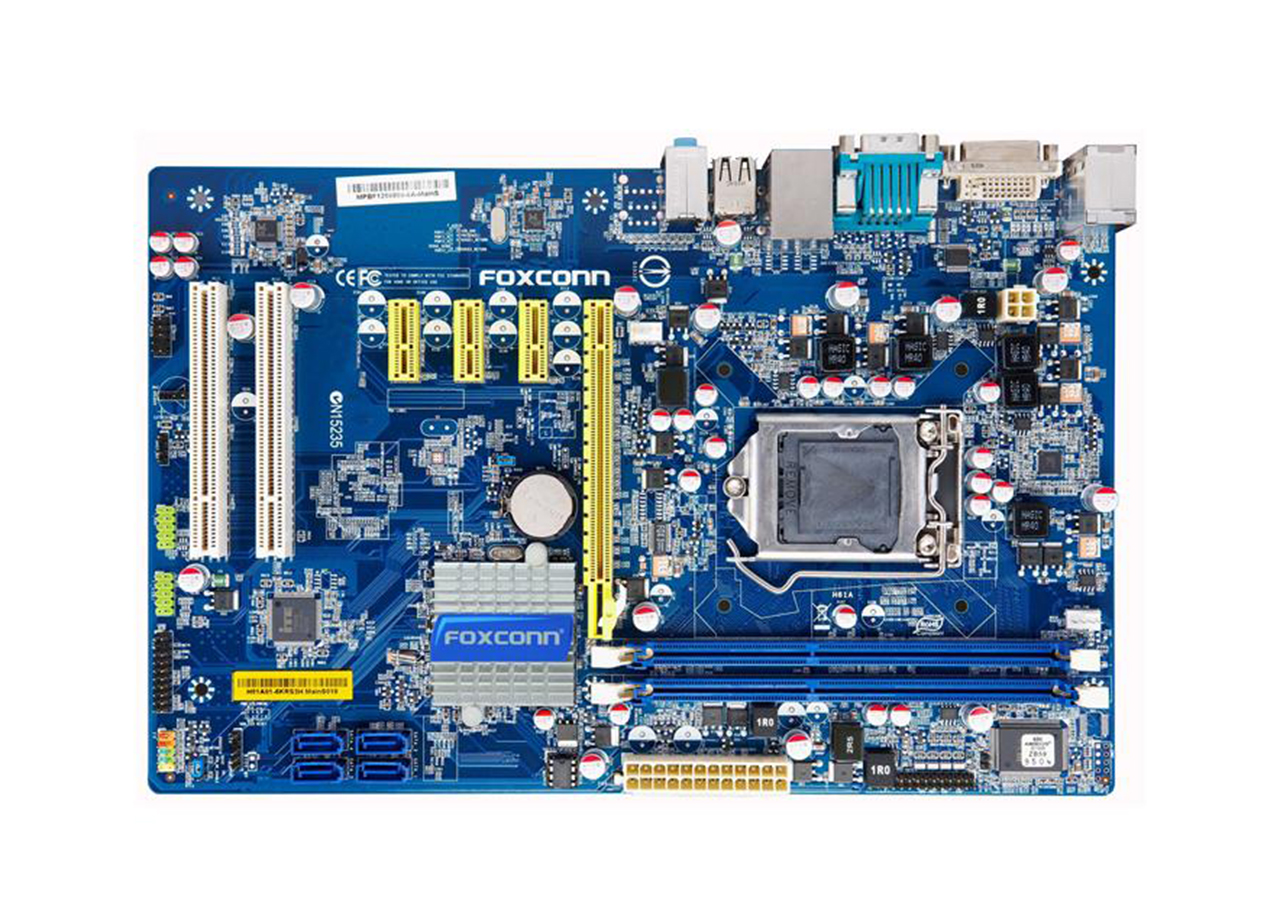

Foxconn H61A

LAN

Gigabit Lan

Kết nối I/O bên trong

- 1 x ATX 24-Pin power connector. --White
- 1 x 4-pin ATX 12V power connector.--White
- 1 x 4-pin CPU FAN connector. --White
- 1 x 4-pin System FAN connector.--White
- 1 x Front Pannel header--full color
- 1 x Front Audio header--Black
- 1 x TPM/TCM header---Black
- 1 x S/PDIF out header.--Black
- 4 x SATAII connectors.--Blue
- 1 x Speaker header.--Black
- 1 x Buzzer(reserve)
- 1 x IR/CIR header
- 1 x Parallel header
- 1 x PCI Express3.0(IVB)/ 2.0 x16
- 3 x PCI Express x1
- 2 x PCI slot

USB

- 2 x USB 2.0 headers.--Green(without housing)

Kết nối khác

- 1 x PS/2 keyboard port.
- 1 x VGA port
- 1 x COM port
- 1 x DVI-D port
- 6 x USB 2.0 ports.
- 1 x RJ45 LAN jack.
- 1 x Audio support 3 jack
