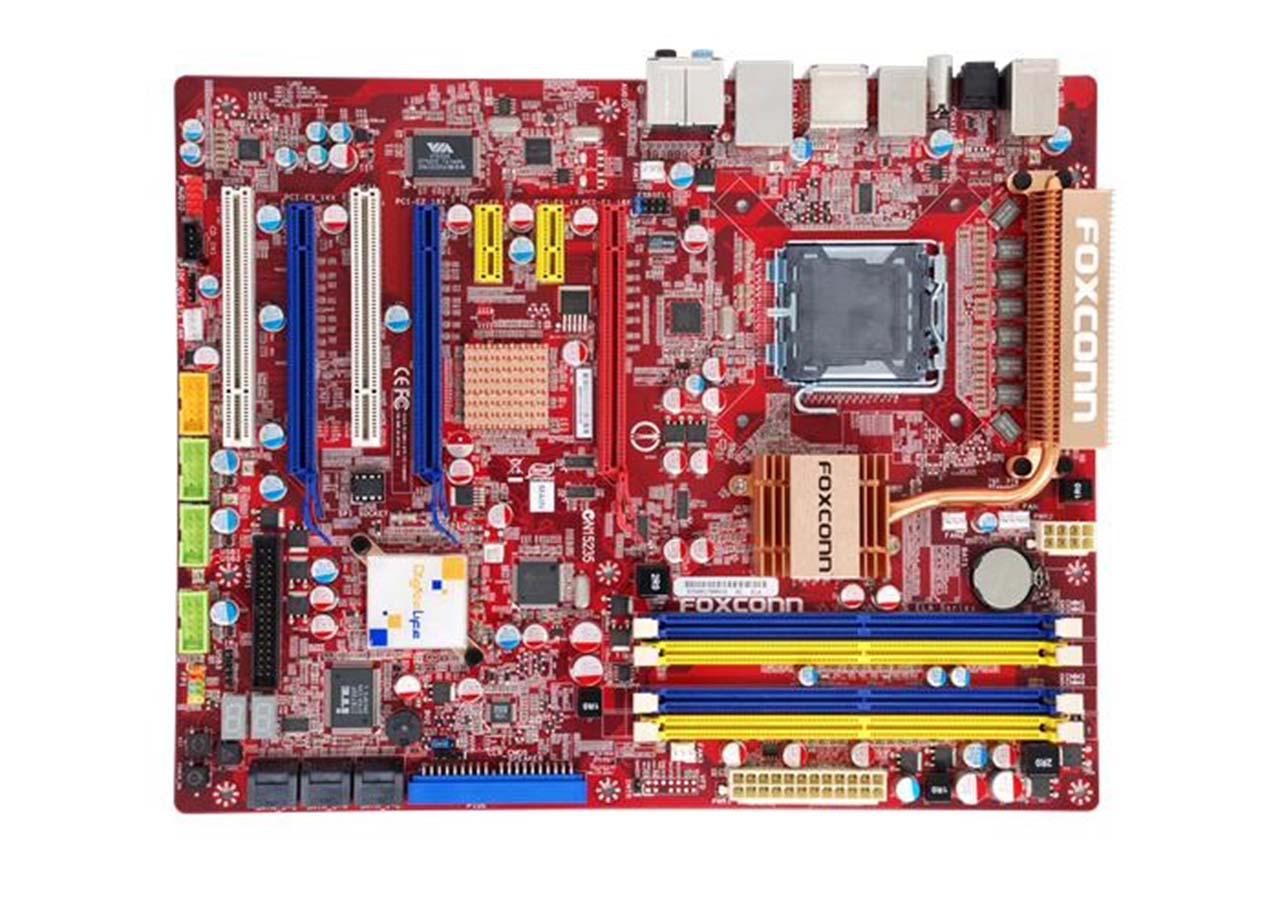

Foxconn ELA

LAN

Gigabit LAN by Realtek RTL8111C

Kết nối I/O bên trong

- 3 x PCIe2.0 x16
- 2 x PCIe2.0 x1
- 2 PCI
- 1 x ATX 24-Pin power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 2 x 4-pin CPU / System fan connectors
- 3 x 3-pin fan power connectors
- 3 x Onboard On/Off/CMOS Reset buttons
- 1 x Front Panel connector
- 1 x Floppy connector
- 1 x CD-in connector
- 1 x IrDA header

- 3 x SATAII connectors
- 1 x on-board power_LED
- 1 x IEEE1394a header
- 1 x Intrusion Alarm haeder
- 1 x S/PDIF Out header
- 1 x IDE connector
- 1 x Front Audio header
- 1 x Buzzer

USB

- 3 x USB 2.0 connectors support additional 6 ports
- 6 x USB 2.0 ports

IE 1394

3 x 1394a connectors (rear panel x2, pin header x1)

Kết nối khác

- 1 x PS/2 mouse port
- 1 x S/PDIF Coaxial Out port
- 1 x S/PDIF Fiber Out port
- 2 x IEEE1394a ports (with 1* mini IEEE1394a)
- 1 x Audio jack supports 6 jacks
- 2 x eSATA ports
- 1 x RJ45 LAN port
