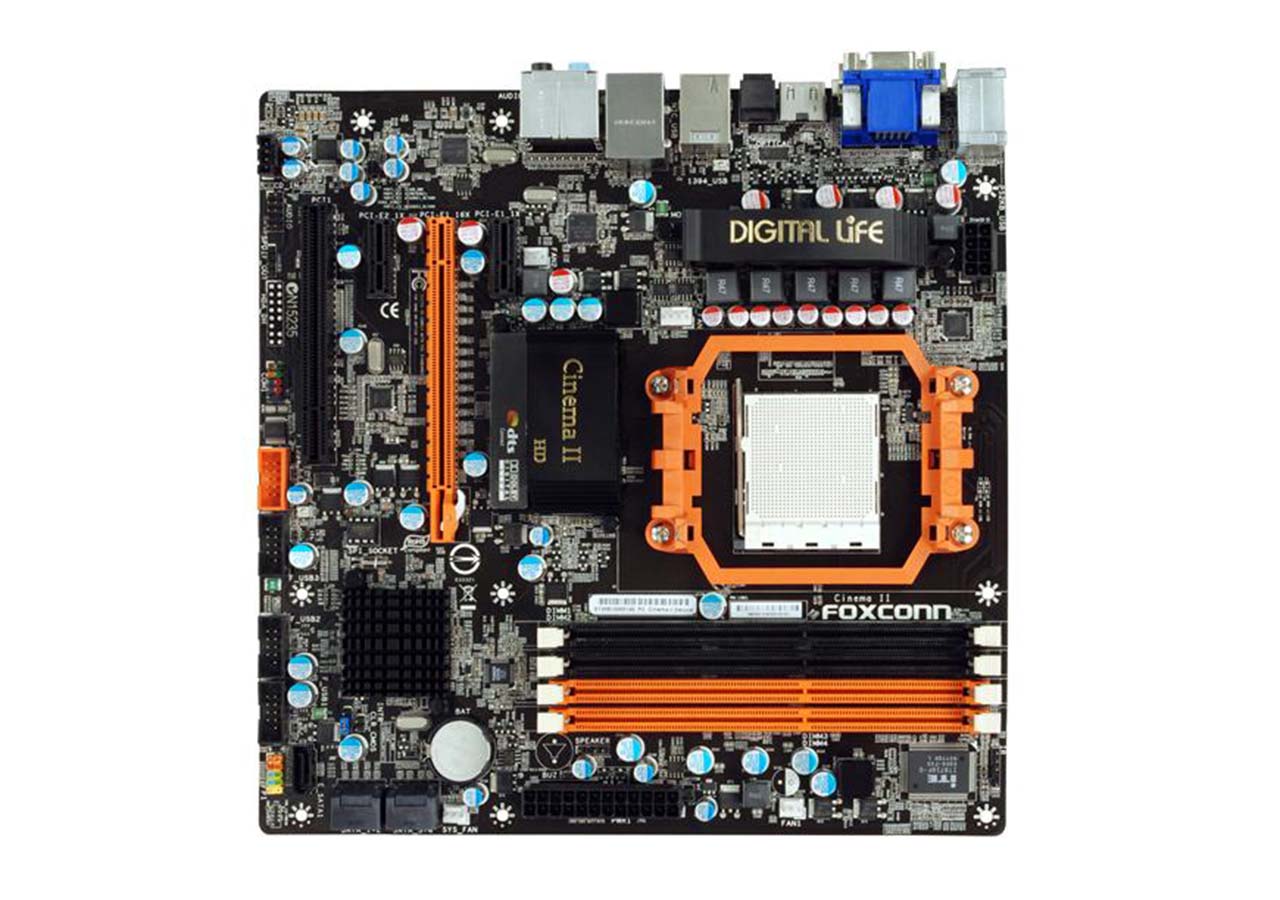

Foxconn Cinema II Deluxe

LAN

Gigabit Lan

Kết nối I/O bên trong

- 1 x PCIe 2.0 x16
- 2 x PCIe 2.0 x1
- 1 x PCI
- 1 x ATX 24-Pin power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin CPU Fan connector
- 1 x 3-pin System Fan connectors
- 2 x 3-pin Fan power connectors
- 1 x CD-in connector
- 1 x S/PDIF out header
- 1 x Front Panel header
- 1 x Front Audio header
- 4 x SATAII connectors
- 1 x eSATA header
- 1 x IEEE 1394a header
- 1 x Intrusion Alarm header
- 1 x IrDA header
- 1 x COM header
- 1 x Speaker

USB

- 3 x USB 2.0 connectors support additional 6 ports
- 6 x USB 2.0 ports

IE 1394

2 x IEEE1394a

Kết nối khác

- 1 x PS/2 keyboard port
- 1 x VGA connect
- 1 x DVI port
- 1 x HDMI port
- 1 x IEEE 1394a port
- 1 x Audio connector with 6 jacks

- 1 x RJ45 LAN port
- 1 x S/PDIF out port
