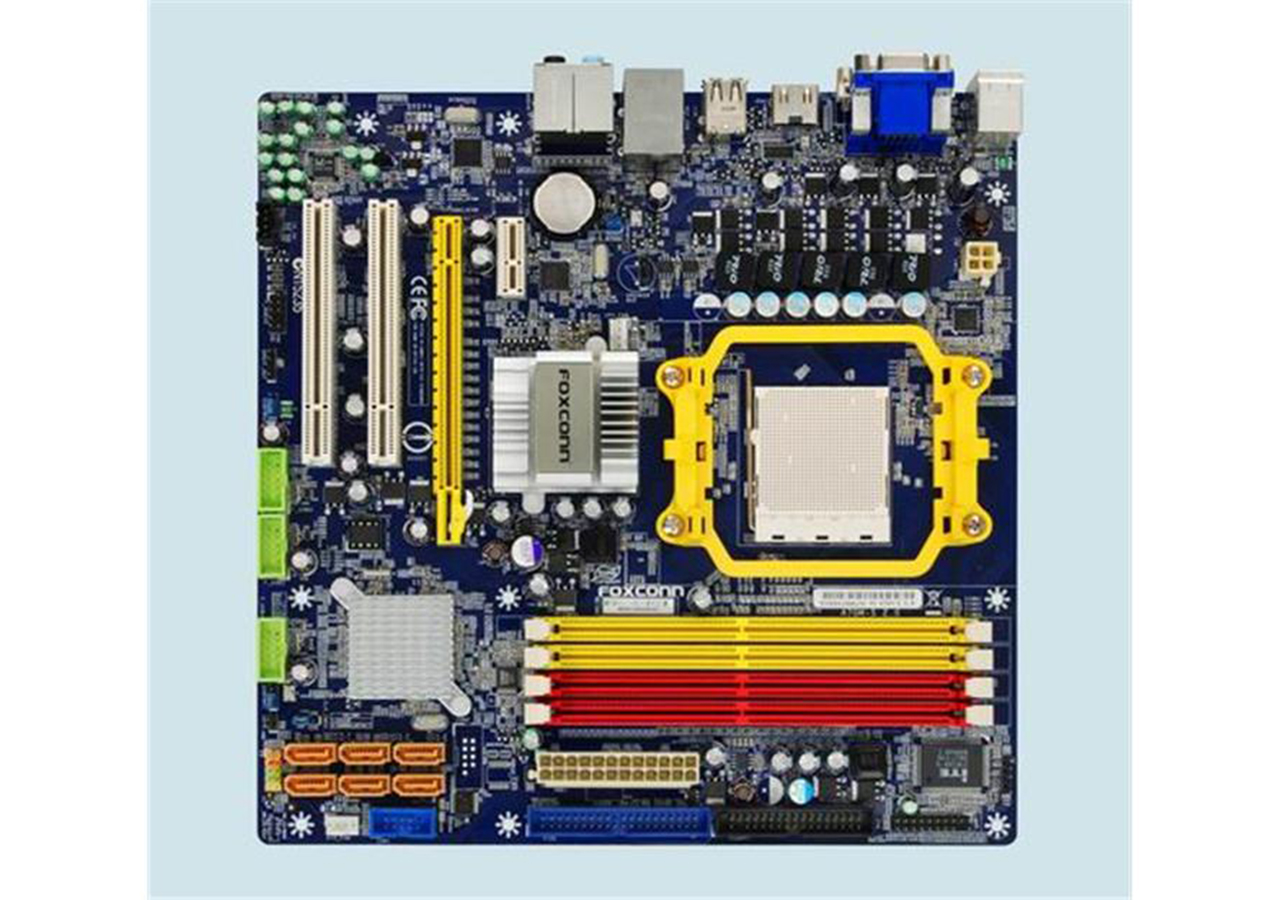

Foxconn A7GM-S 2.0

Đặc điểm CPU: - AMD Phenom FX, Phenom, Athlon 64FX, Athlon 64x2, Athlon 64, Sempron
- Socket AM2+ and AM3

Kết nối I/O bên trong: - 1 x PCIe 2.0 x16
- 1 x PCIe 2.0 x1
- 2 x PCI
- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 2 x 4-pin CPU / System FAN connectors
- 1 x CD-in connector
- 1 x Front panel connector
- 1 x Front Audio Header
- 1 x IDE connector
- 1 x Floppy connector
- 3 x USB power headers
- 1 x IrDA header
- 6 x Serial ATAII connectors
- 1 x Intruder Alarm header
- 1 x S/PDIF Out header
- 1 x TPM header
- 1 x Speaker header
- 1 x COM1 header
- 1 x COM2 header (reserved)
- 1 x Buzzer (reserved)

USB: - 3 x USB 2.0 connectors support additional 6 ports
- 4 x USB 2.0 ports

Kết nối khác: - 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x HDMI port
- 1 x DVI-D port
- 1 x audio jack supports 6 jacks
- 1 x RJ45 LAN port
- 1 x VGA port
