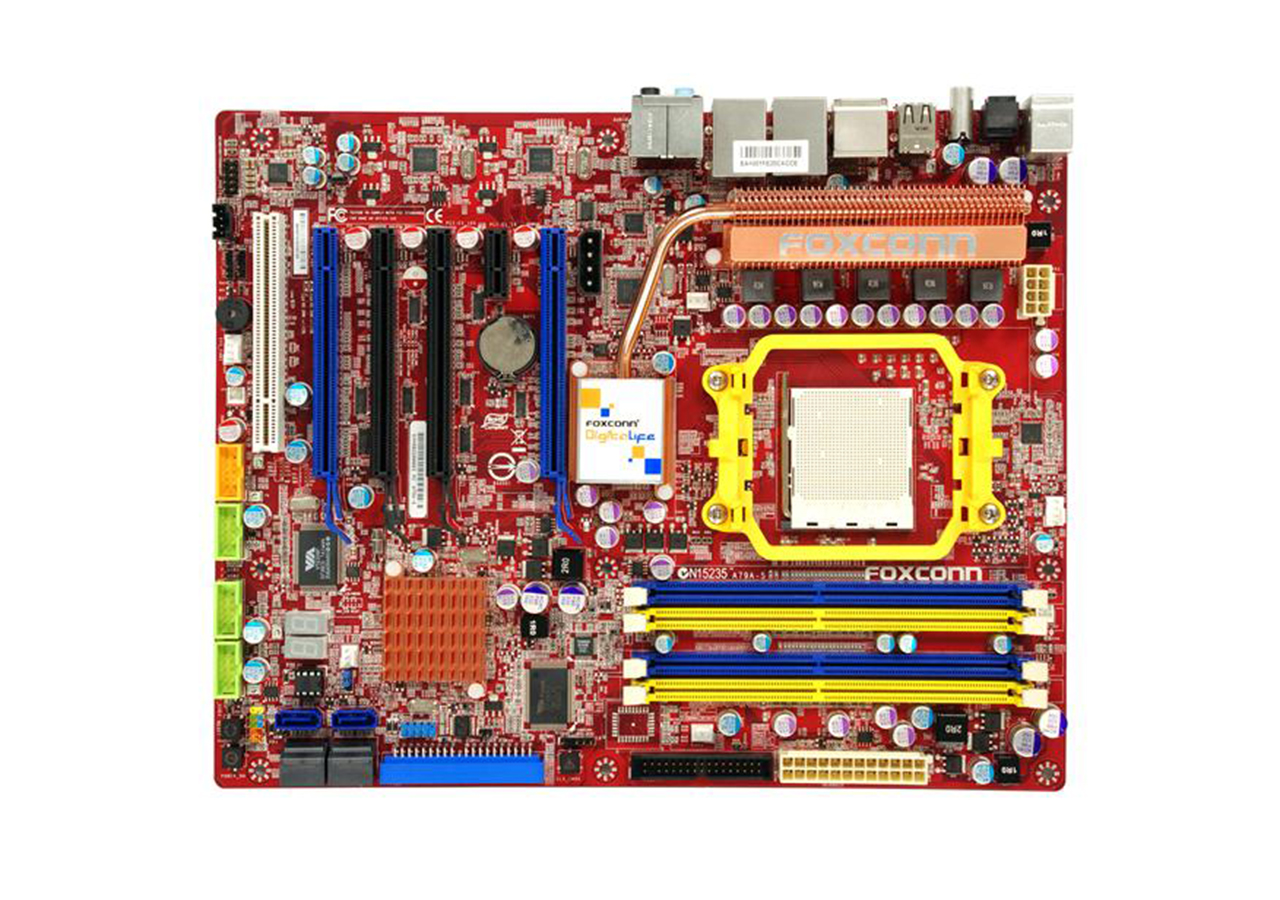

Foxconn A79A-S

LAN

Dual Gigabit LAN by Realtek RTL8111B

Kết nối I/O bên trong

- 4 x PCIe2.0 x16
- 1 x PCIe2.0 x1
- 1 x PCI
- 1 x ATX 24-pin power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin power connector
- 2 x 4-pin CPU / System smart fan connectors
- 3 x Onboard On/Off/CMOS reset buttons
- 3 x 3-pin power fan connectors
- 1 x Floppy disk drive connector
- 1 x CD-in connector
- 1 x Front Panel header
- 1 x Buzzer
- 6 x Serial ATAII connectors
- 1 x ATA133 IDE connector
- 1 x Onboard power_LED
- 1 x Intrusion Alarm header
- 1 x Intel Azalia header
- 1 x COM1 header
- 1 x 1394 header
- 1 x IrDA header
- 1 x Speaker

USB

- 3 x USB 2.0 headers support additional 6 ports
- 6 x USB 2.0 ports

IE 1394

2 x 1394a connectors (rear panel x1, pin header x1)

Kết nối khác

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x S/PDIF Out Coaxial port
- 1 x S/PDIF Out Fiber port
- 2 x eSATA ports
- 1 x Audio jack supports 6 jacks
- 2 x RJ45 LAN ports
- 1 x 1394 port
