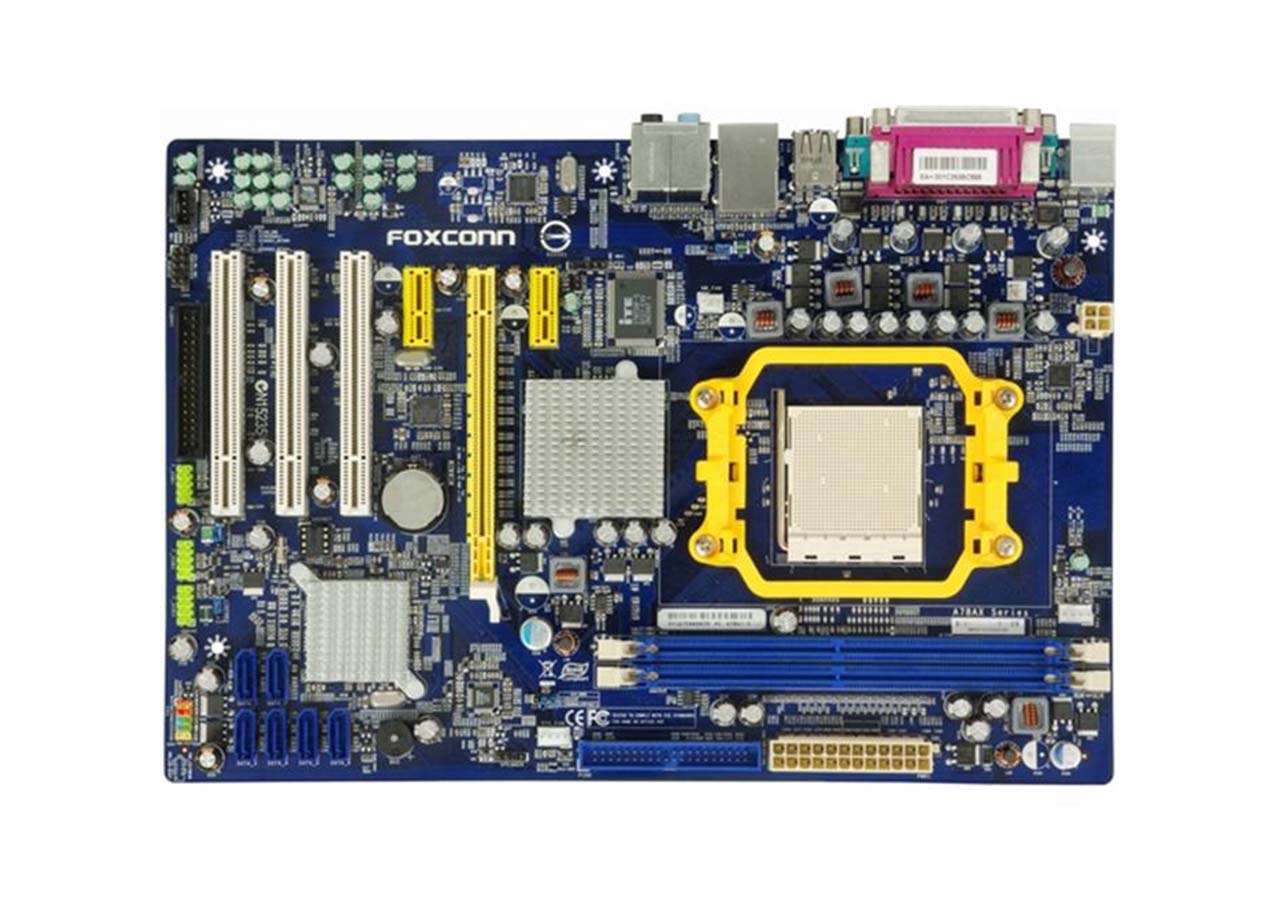

Foxconn A78AX-S

LAN

Gigabit LAN by Realtek RTL8111B / RTL8111D

Kết nối I/O bên trong

- 1 x PCIe 2.0 x16
- 2 x PCIe 2.0 x1
- 3 x PCI
- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 2 x 4-pin CPU / System FAN connectors
- 1 x 3-pin NB FAN connect
- 1 x CD-in connector
- 1 x Front Audio Header
- 1 x Front Panel Header
- 1 x Floppy disk drive connector
- 1 x USB power header
- 6 x Serial ATAII connectors
- 1 x ATA133 IDE connector
- 1 x Intrusion Alarm header
- 1 x Speaker (reserved)
- 1 x Buzzer

USB

- 3 x USB 2.0 headers support additional 6 ports
- 4 x USB 2.0 ports

Kết nối khác

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x Serial ports
- 1 x Parallel port
- 1 x Audio jack supports 6 jacks
- 1 x RJ45 LAN port
