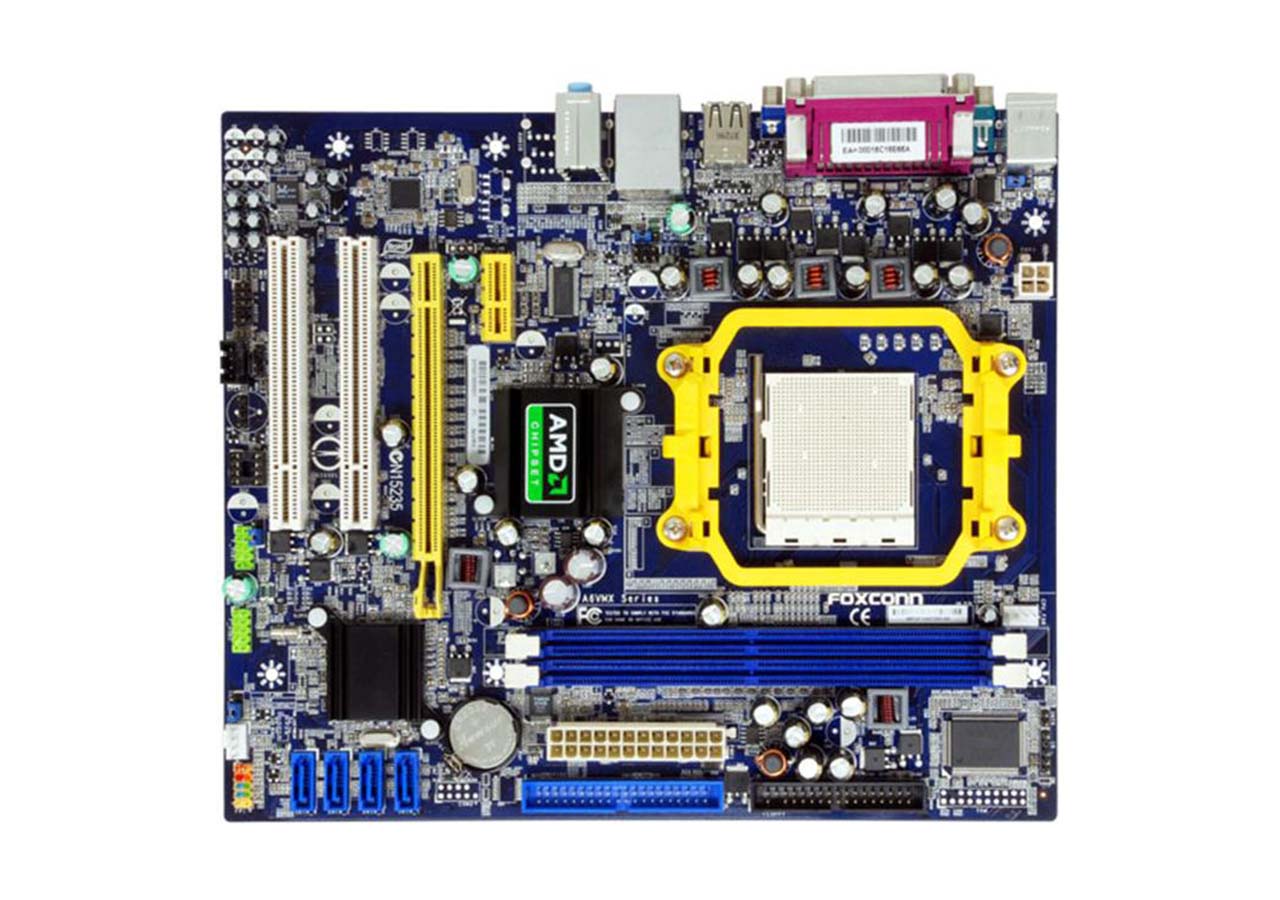

Foxconn A6VMX

Đặc điểm CPU: - AMD Athlon 64FX, Athlon 64x2, Athlon 64, Sempron
- Socket AM2
- Hỗ trợ Socket AM2+ với HT1.0 interface

Kết nối I/O bên trong: - 1 x PCIe x16
- 1 x PCIe x1
- 2 x PCI
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU / System / NB (Reserved) FAN connectors
- 1 x CD-in connector
- 1 x Front Audio header
- 1 x S/PDIF Out header
- 1 x IRDA
- 1 x TV Out header
- 1 x Buzzer (Reserved)
- 1 x Floppy connector
- 1 x Front Panel connector
- 1 x Speaker
- 4 x SATAII connectors
- 1 x Intruder
- 1 x COM header (Reserved)
- 1 x TPM (Reserved)
- 2 x USB Power header
- 1 x IDE connector

USB: - 2 x USB 2.0 connectors support additional 4 ports
- 4 x USB 2.0 ports

Kết nối khác: - 1 set 5.1 channel Audio jacks (3 jacks)
- 1 x Parallel port
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x VGA port
- 1 x RJ45 LAN port
- 1 x Serial port
