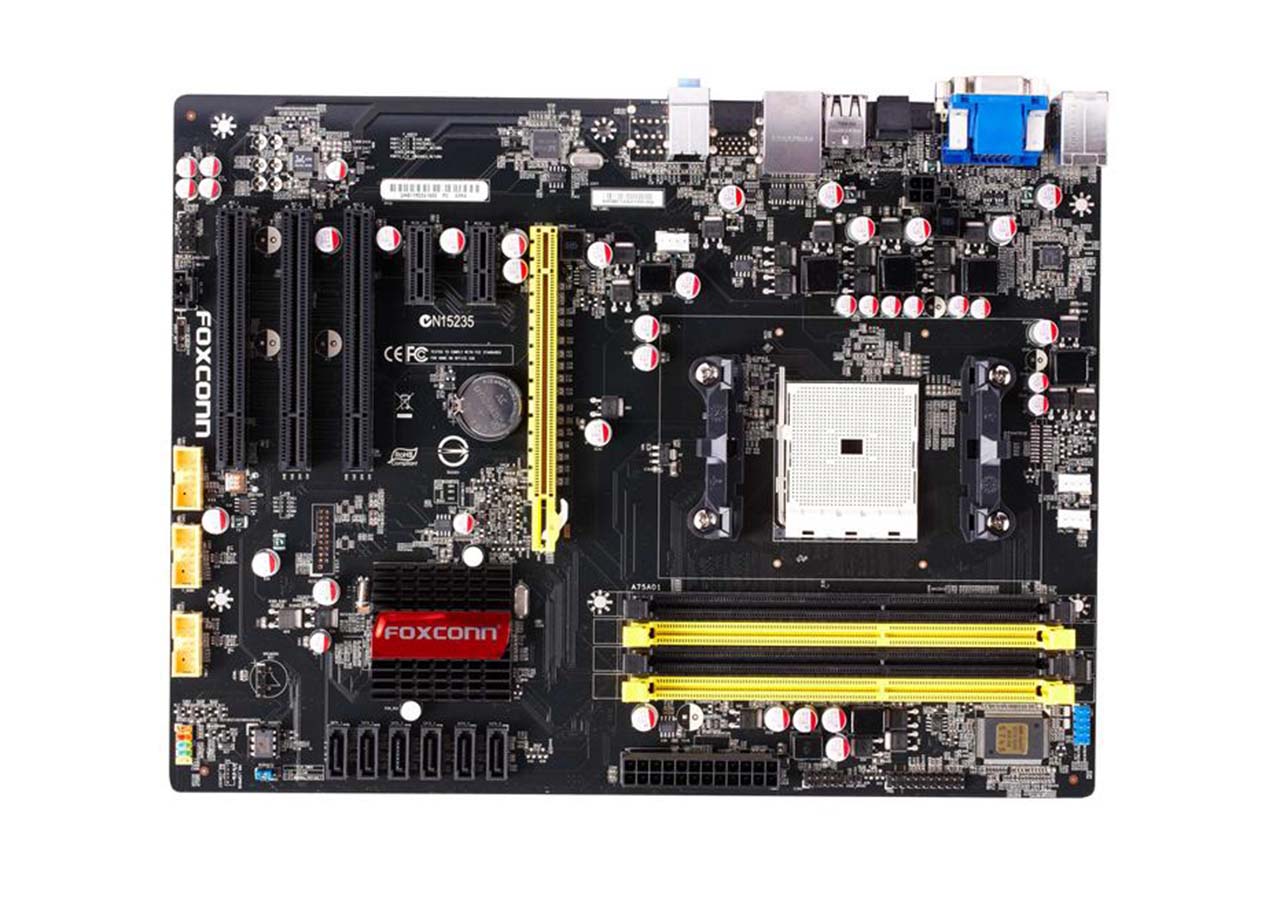

Foxconn A55A

Kết nối I/O bên trong

- 1 x PCIe x16
- 2 x PCIe x1
- 3 x PCI
- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 3 x 4-pin CPU / System Fan connector
- 1 x CD-in connector
- 1 x Speaker header
- 6 x Serial ATA connectors
- 1 x TPM/TCM header
- 1 x Intrusion Alarm header
- 1 x Buzzer (reserved)
- 1 x COM header
- 1 x Front Panel header
- 1 x S/PDIF out header(reserved)
- 1 x Front Audio header
- 1 x IR/CIR header (default IR)

USB

- 3 x USB 2.0 headers
- 6 x USB 2.0 ports

Kết nối khác

- 1 x PS/2 keyboard port
- 1 x VGA port
- 1 x DVI port
- 1 x audio jack supports 3 jacks
- 1 x S/PDIF out port(optical)
- 1 x RJ45 Lan port
