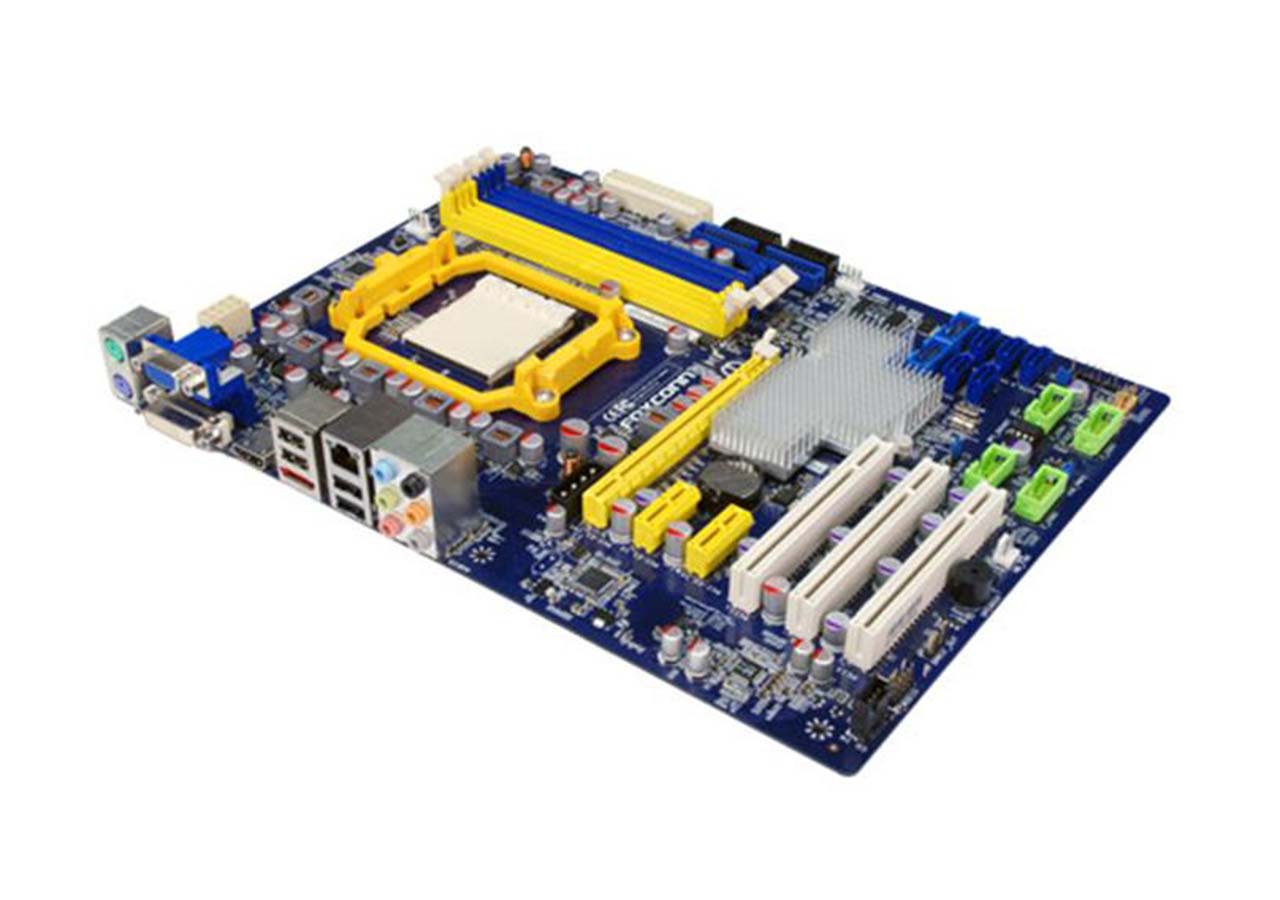

Foxconn 720A

Đặc điểm CPU: - AMD Phenom FX, Phenom, Athlon 64x2, Athlon 64, Sempron
- Socket AM2 và AM2+

Kết nối I/O bên trong: - 1 x PCIe 2.0 x16
- 2 x PCIe 2.0 x1
- 3 x PCI
- 1 x ATX 24-Pin power connector
- 1 x 8-pin ATX 12V power connector
- 2 x 4-pin CPU / System fan connectors
- 1 x 3-pin NB fan connector
- 1 x CD-in connector
- 1 x Front Audio header
- 1 x Floppy disk drive connector
- 1 x S/PDIF Out header
- 1 x IrDA header(optional)
- 5 x Serial ATAII connectors
- 1 x ATA133 IDE connector
- 1 x COM1 header
- 1 x COM2 header(reserve) 3 x USB Power headers
- 1 x Buzzer(optional)
- 1 x Intrusion Alarm header
- 1 x Speaker

Kết nối khác: - 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x Audio jack supports 6 jacks
- 1 x RJ45 LAN port
- 1 x eSATA port
