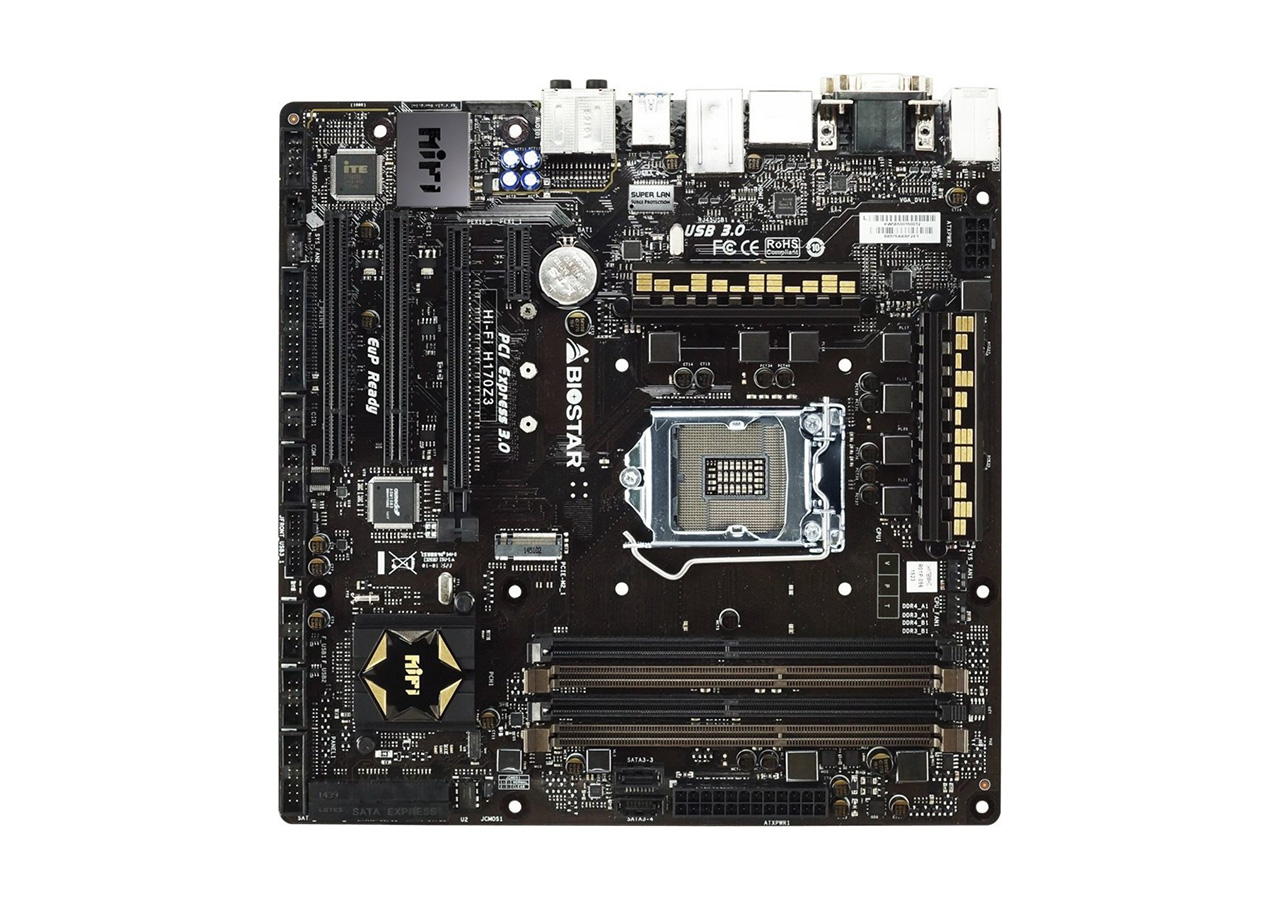

Biostar Hi-Fi H170Z3 Ver. 5.x

Đặc điểm CPU: - CPU 7th & 6th Gen Intel Core i3, i5, i7 LGA 1151
- CPU 7th & 6th Gen Intel Pentium LGA 1151
- CPU 7th & 6th Gen Intel Celeron LGA 1151

RAM: - Hỗ trợ Dual Channel DDR3L 1866(OC)/1600/ 1333 MHz
- Hỗ trợ Dual Channel DDR4 2133/ 1866 MHz
- 2 x DDR3 DIMM
- 2 x DDR4 DIMM
- Hỗ trợ tối đa 16(DDR3L)/ 32(DDR4)GB

Đặc điểm âm thanh: - Realtek ALC892 8-Channel Blu-ray Audio
- Hỗ trợ Biostar Hi-Fi

LAN: - Intel I219V - Gigabit Ethernet PHY
- Hỗ trợ Super LAN Surge Protection

Kết nối I/O bên trong: - 1 x PS/2 Keyboard
- 4 x USB 3.0 Port
- 2 x USB 2.0 Port
- 1 x DisplayPort Connector, resolution up to 4096 x 2304 @60Hz
- 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz, compliant with HDMI 1.4a
- 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
- 1 x VGA Port, resolution up to 1920 x 1200 @60Hz
- 1 x RJ-45 Port
- 6 x Audio Connector

USB: - 4 x USB 3.0 Port
- 1 x USB 3.0 Header
- 2 x USB 2.0 Port
- 2 x USB 2.0 Header

Kết nối khác: - 1 x PCI-E x16 3.0 Slot
- 1 x PCI-E x1 3.0 Slot
- 2 x PCI Slot
- 1 x Printer Header
- 1 x USB 3.0 Header
- 2 x USB 2.0 Header
- 4 x SATA3 6Gb/s Connector
- 1 x SATA Express 16Gb/s Connector
- 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
- 1 x Front Audio Header
- 1 x Front Panel Header
- 1 x S/PDIF-Out Header
- 1 x CPU Fan Header
- 2 x System Fan Header
- 1 x Serial Header
- 1 x CIR Header
