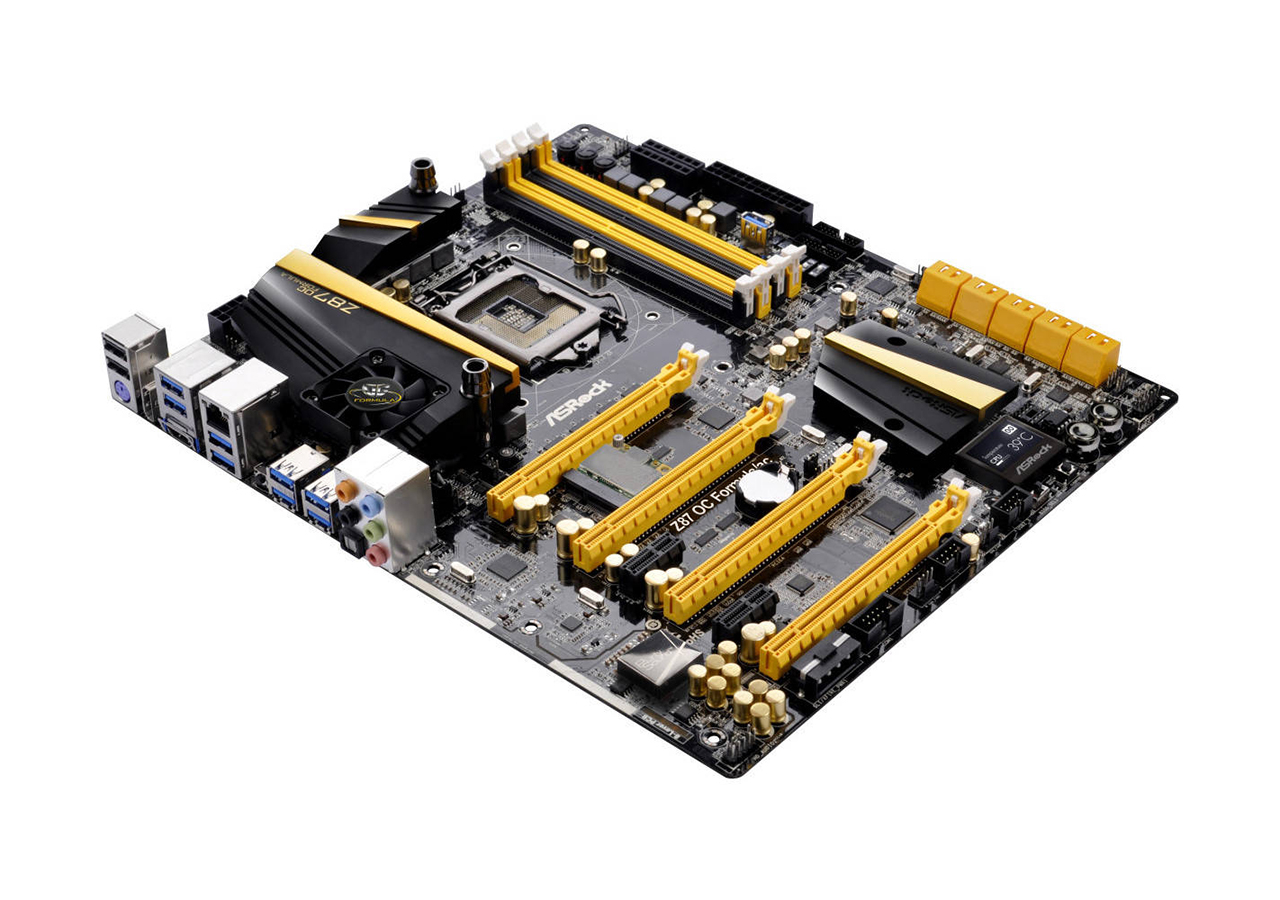

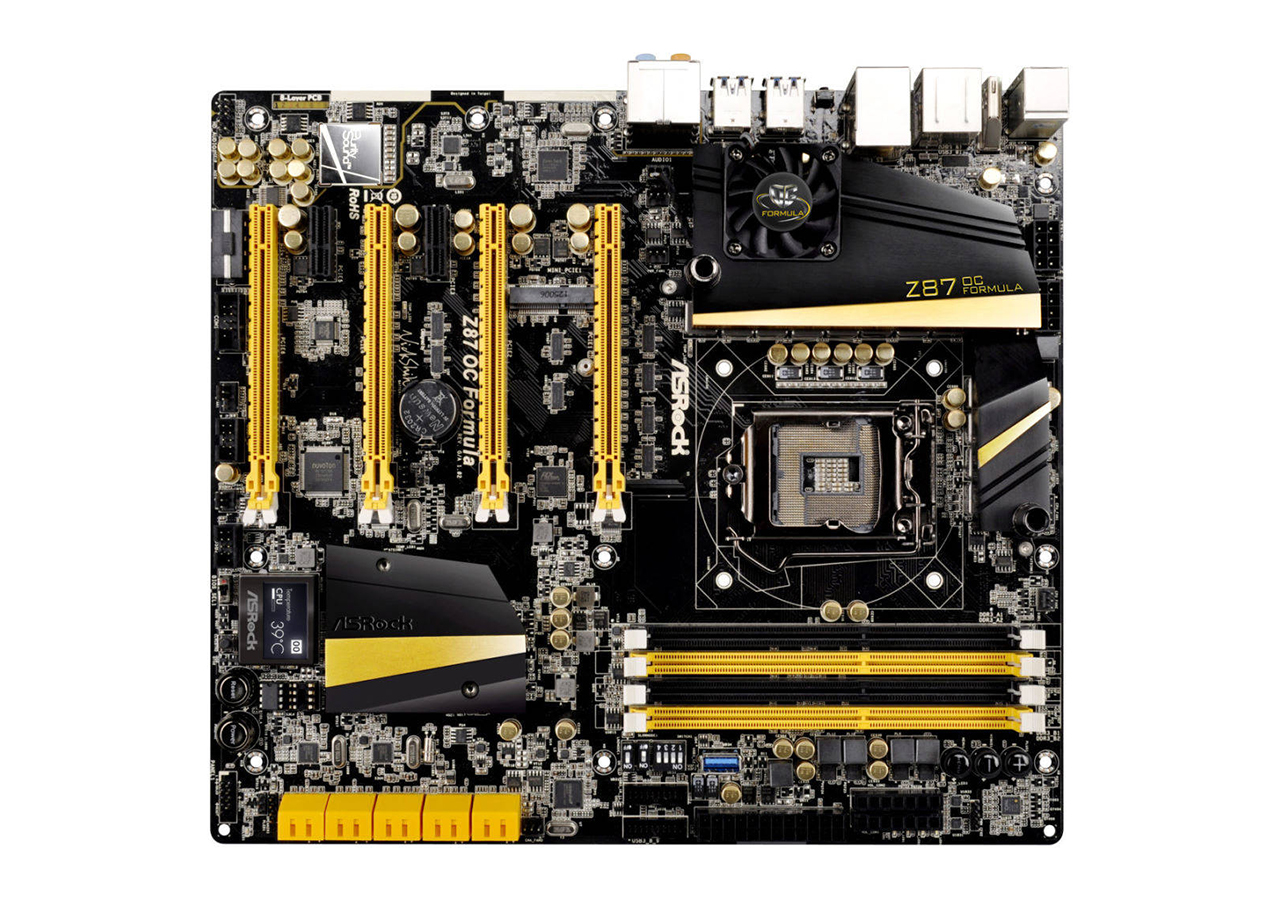

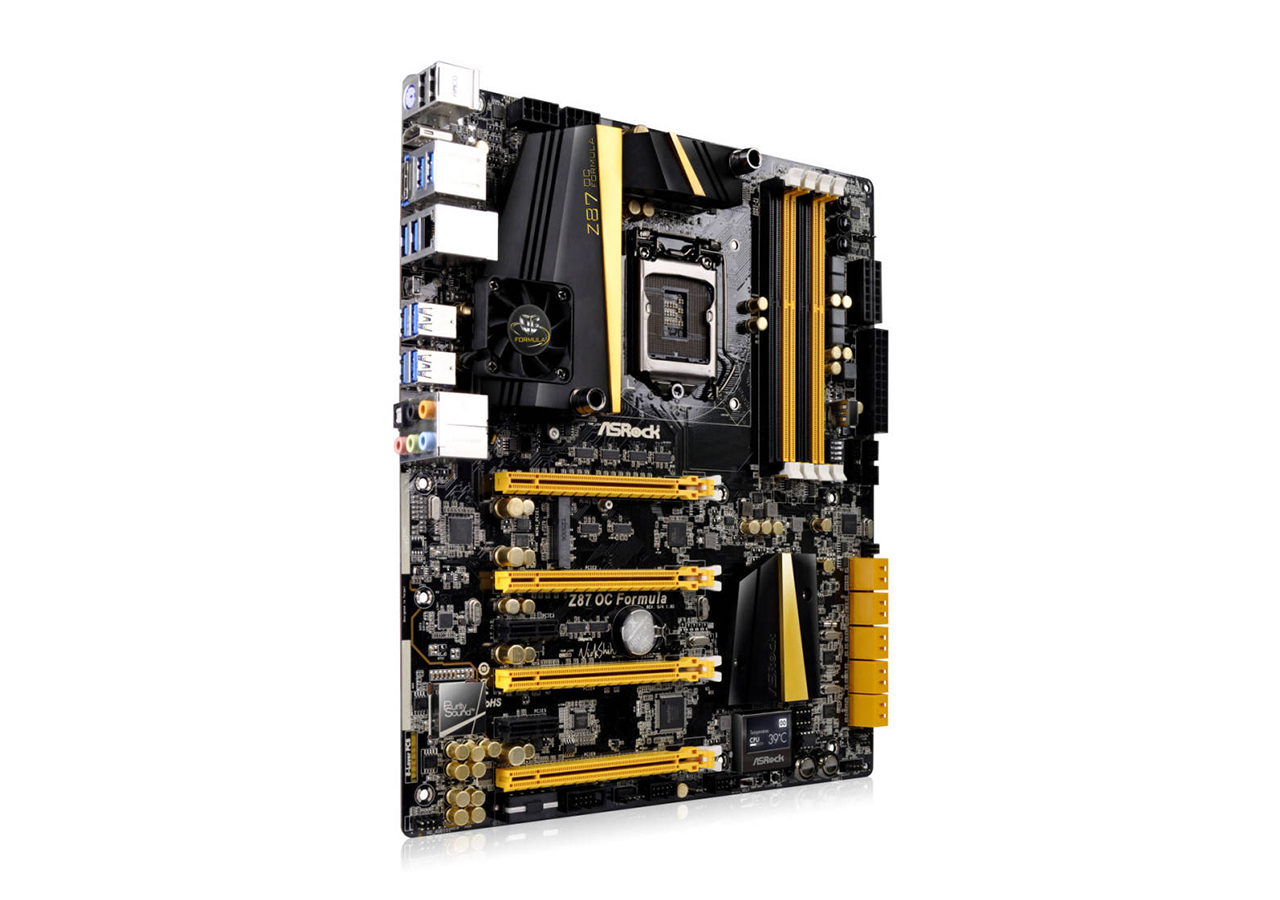

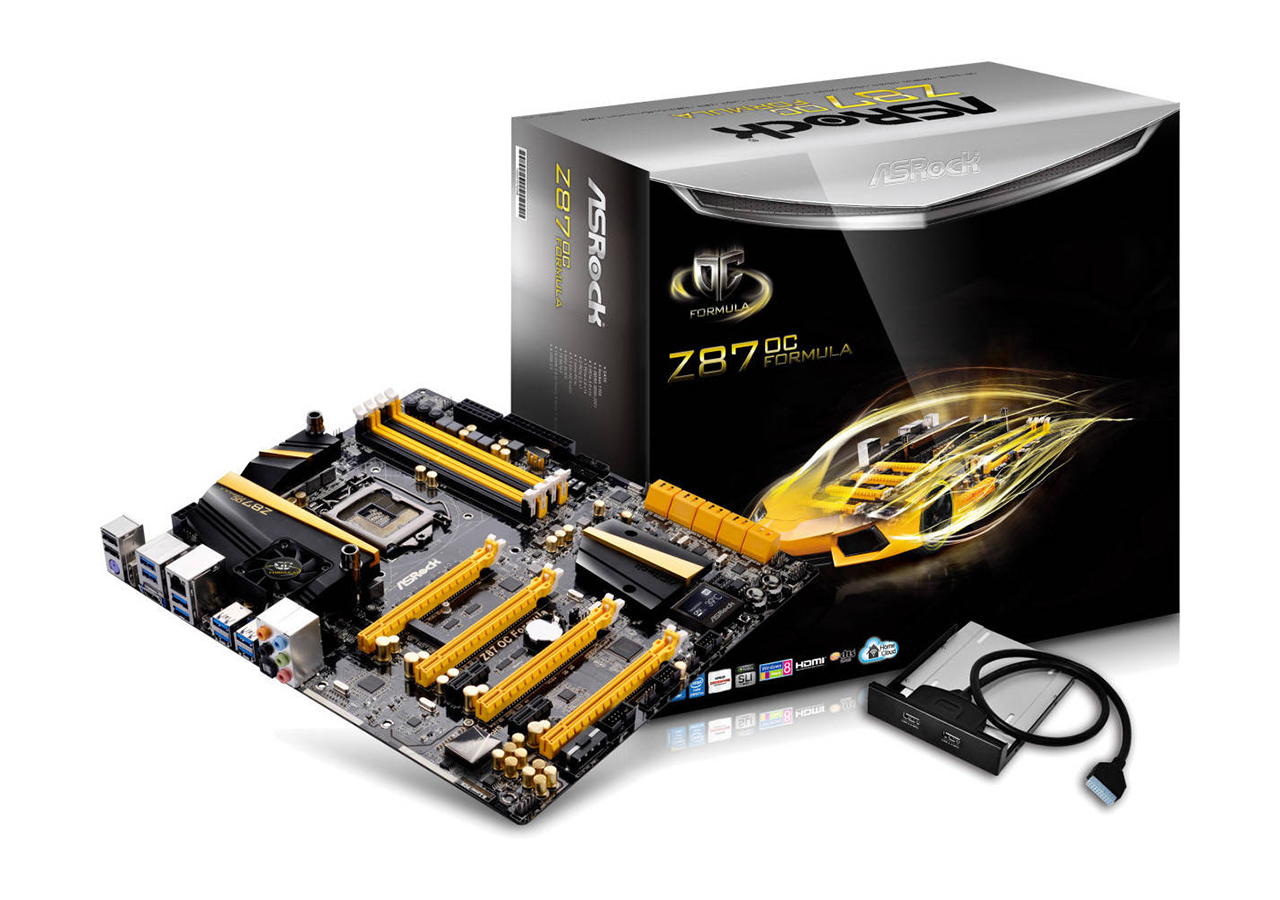

Asrock Z87 OC Formula

Đặc điểm CPU: - Hỗ trợ bộ vi xử lý Intel thế hệ 4/4 new Core i7/i5/i3/Pentium/Celeron (Socket 1150)
- Hỗ trợ ASRock BCLK Full-range Overclocking
- Hỗ trợ Intel K-series CPU mở khóa
- Hỗ trợ công nghệ Intel Turbo Boost 2.0

Card đồ hoạ: - Hỗ trợ đồ họa tích hợp Intel HD Graphics: Intel Quick Sync Video với AVC, MVC (S3D) và MPEG-2 Full HW Encode1, Intel InTru 3D, Công nghệ Intel Clear Video HD, Intel Insider, Intel đồ hoạ HD 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Bộ nhớ chia sẻ tối đa 512 MB
- Hỗ trợ HDMI, độ phân giải 4K x 2K (4096 x 2304)@24 Hz
- Hỗ trợ tự động tương thích Lip Sync, Deep Color (12bpc), xvYCC và HBR (High Bit Rate Audio) với cổng HDMI (phải tuân thủ theo tiêu chuẩn HDMI)
- Hỗ trợ HDCP với cổng HDMI
- Hỗ trợ Phát lại Blu-ray 1080p Full HD với cổng HDMI

RAM: - Công nghệ bộ nhớ kênh đôi DDR3/DDR3L
- 4 x DDR3/DDR3L DIMM
- Hỗ trợ DDR3/DDR3L 3000+ (OC)/2933 (OC)/2800(OC)/2400(OC)/2133(OC)/1866/1600/1333/1066 non-ECC, un-buffered memory
- Dung lượng bộ nhớ hệ thống tối đa: 32 GB
- Hỗ trợ bộ nhớ Intel Extreme Memory Profile (XMP) 1.3/1.2
- Distortion-Free Slot

Tính năng khác: - CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Multi Thermal Sensor
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
- 1 x Status OLED

BIOS: - 2 x 64 MB AMI UEFI BIOS
- Hỗ trợ công nghệ UEFI Backup an toàn
- ACPI 1.1
- Hỗ trợ SMBIOS 2.3.1
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Khác: - ASRock APP Shop
- ASRock Formula Drive
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- NickShih's OC Profile
- Fine-Tuning V-Controller
- Timing Configurator
- ASRock USB Key
- ASRock FAN-Tastic Tuning
- Hybrid Booster:
CPU Frequency Stepless Control
ASRock U-COP
Boot Failure Guard (B.F.G.)
- Good Night LED
- OC Formula Power Kit
12 Power Phase Design
Digi Power
Dual-Stack MOSFET (DSM)
Multiple Filter Cap (MFC) (Filters different noises by 3 different capacitors: DIP solid cap, POSCAP and MLCC)
Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- OC Formula Connector Kit:
Hi-Density Power Connector (8 pin)
15μ Gold Finger (CPU sockets, memory sockets and PCIE x16 slots)
Distortion-Free Slot
- OC Formula Cooling Kit:
Twin-Power Cooling (Combine active air cooling and water cooling)
8 Layer PCB
4 x 2oz copper
GELID Solutions GC-Extreme Thermal Compound
- OC Formula Monitor Kit:
Status OLED
Multi Thermal Sensor

Đặc điểm âm thanh: - Realtek ALC1150 Audio Codec
- 7.1 CH HD Audio
- Hỗ trợ Premium Blu-ray audio
- Hỗ trợ Purity Sound
- 115 dB SNR DAC with differential amplifier
- TI NE5532 Premium Headset Amplifier (hỗ trợ up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect

LAN: - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I217V
- Hỗ trợ Intel Remote Wake Technology
- Hỗ trợ Wake-On-LAN
- Hỗ trợ Energy Efficient Ethernet 802.3az
- Hỗ trợ PXE

Kết nối I/O bên trong: - 1 x COM Port header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 4 x Chassis Fan connectors (1 x 4-pin, 3 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 1 x MOS Fan connector (3-pin)
- 1 x 24 pin ATX power connector
- 2 x 8 pin 12V power connectors (Hi-Density Power Connector)
- 1 x SLI/XFire power connector
- 1 x Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x Vertical Type A USB 3.1 Gen1
- 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports) (ASMedia Hub)
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch
- V-Probe: 2 x 7-set of onboard voltage measurement points laid
- Rapid OC Button: +/- buttons to adjust OC frequency
- 1 x PCIe ON/OFF Switch
- 1 x Post Status Checker (PSC)
- 1 x Slow Mode Switch
- 1 x LN2 Mode Switch
- 1 x BIOS Selection Switch

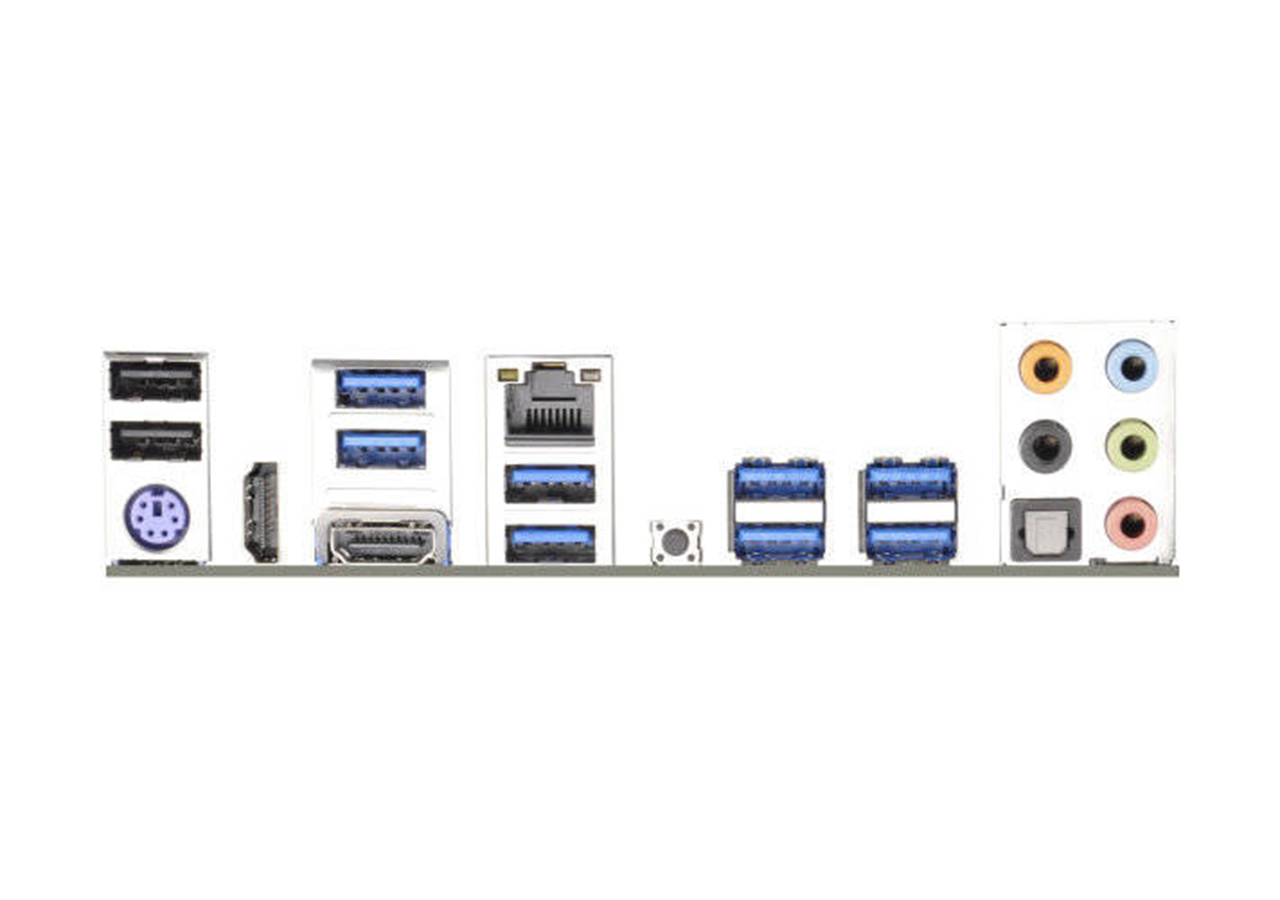

Kết nối khác: - 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports
- 4 x USB 3.1 Gen1 Ports (Intel Z87)
- 4 x USB 3.1 Gen1 Ports (Etron EJ188H)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
- 3 x PCI Express 3.0 x16 slots (PCIE1/PCIE2/PCIE4: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4); triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE4))
- 1 x PCI Express 2.0 x16 slot (PCIE6: x4 mode)
- 2 x PCI Express 2.0 x1 slots
- 1 x mini-PCI Express slot
- PLX8605 embedded
- Hỗ trợ AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX and CrossFireX
- Hỗ trợ NVIDIA Quad SLI and SLI
- 6 x SATA3 6.0 Gb/s
- 4 x SATA3 6.0 Gb/s
