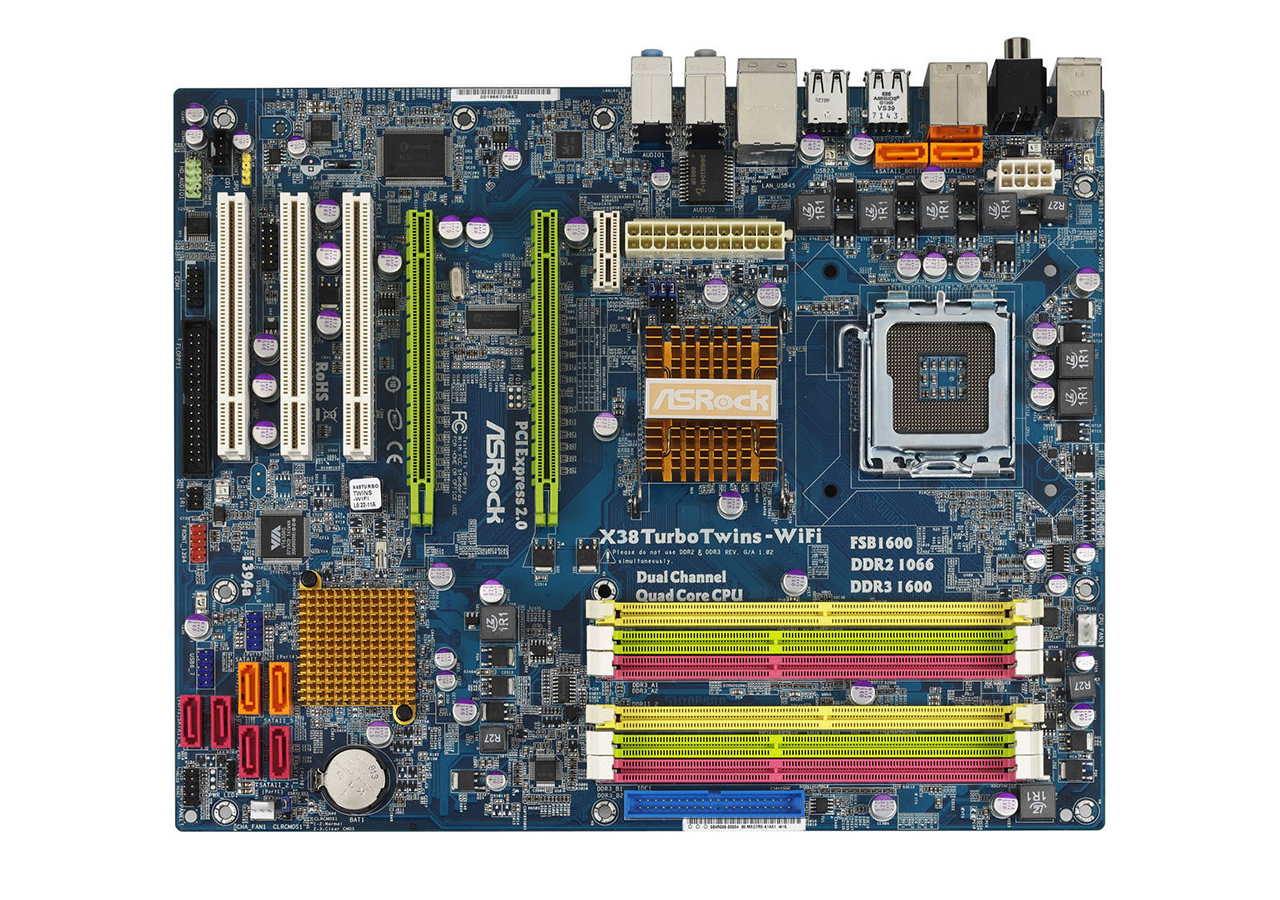

Asrock X38TurboTwins-WiFi

Đặc điểm CPU: - LGA 775 for Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron, hỗ trợ Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Hỗ trợ FSB 1600/1333/1066/800MHz CPUs
- Hỗ trợ Hyper-Threading Technology
- Hỗ trợ Untied Overclocking Technology
- Hỗ trợ EM64T CPU

RAM: - Dual Channel DDR3/DDR2 memory technology
- 4 x DDR3 DIMM slots
- Hỗ trợ DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
- Bộ nhớ chia sẻ tối đa: 8 GB
- 2 x DDR2 DIMM slots
- Hỗ trợ DDR2 1066/800/667 non-ECC, un-buffered memory
- Bộ nhớ chia sẻ tối đa: 8 GB

Tính năng khác: - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

BIOS: - 8 Mb AMI BIOS
- AMI Legal BIOS
- Hỗ trợ "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Hỗ trợ Jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB, SB, VTT Voltage Multi-adjustment
- Hỗ trợ I. O. T. (Intelligent Overclocking Technology)

Khác: - ASRock OC Tuner
- Hybrid Booster:
CPU Frequency Stepless Control
ASRock U-COP
Boot Failure Guard (B.F.G.)
- Hệ điều hành: Microsoft Windows 2000 / XP / XP 64-bit / Vista / Vista 64-bit compliant

Đặc điểm âm thanh: - 7.1 CH Windows Vista Premium Level HD Audio with Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)
- DTS (Digital Theater Systems)

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111C
- Hỗ trợ Wake-On-LAN
- Hỗ trợ PXE

Kết nối I/O bên trong: - 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (hỗ trợ 4 USB 2.0 ports)
- 1 x WiFi header

Kết nối khác: - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 2 x eSATA2 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
- Hỗ trợ ATI CrossFire
- 2 x PCI Express 2.0 x16 slots (green x16 mode)
- 1 x PCI Express x1 slot
- 3 x PCI slots
- 6 x SATA2 3.0 Gb/s
- 2 x eSATA2 3.0 Gb/s
- 1 x ATA133 IDE
