Asrock J3355M

Card đồ hoạ: - Integrated Intel HD Graphics 500: 12 EUs inside (up to 700 MHz)
- DirectX 12, Pixel Shader 5.0
- 3 tùy chọn đồ họa: D-Sub, DVI-D and HDMI
- Hỗ trợ Triple Monitor
- Hỗ trợ HDMI, độ phân giải 4K x 2K (3840 x 2160)@30 Hz or 2560 x 1600@60 Hz
- Hỗ trợ DVI-D, độ phân giải 1920 x 1200@60 Hz
- Hỗ trợ D-Sub, độ phân giải 2048 x 1536@60 Hz
- Hỗ trợ Auto Lip Sync, xvYCC and HBR (high Bit Rate Audio) with HDMI Port (compliant HDMI monitor is required)
- Hỗ trợ HW Accelerated Decoders: H.264 level 5.2, HEVC (H.265) 10b MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
- Hỗ trợ HDCP with DVI-D and HDMI Ports
- Hỗ trợ Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

RAM: - Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Hỗ trợ DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
- Bộ nhớ chia sẻ tối đa: 16 GB

Tính năng khác: - CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

BIOS: - 64 Mb AMI UEFI Legal BIOS with GUI
- Hỗ trợ Plug and Play
- ACPI 5.0 compliant wake up events
- Hỗ trợ jumperfree
- SMBIOS 3.0

Khác: - ASRock Super Alloy: High Density Glass Fabric PCB
- ASRock Full Spike Protection
- ASRock Live Update & APP Shop
- Phần mềm:
ASRock Power Gear
ASRock XFast LAN
- UEFI:
ASRock Power Gear
ASRock Instant Flash
ASRock Internet Flash
ASRock Crashless BIOS
- Hệ điều hành:
Microsoft Windows 10 64-bit
Linux: Ubuntu 16.10 / Fedora 25

Đặc điểm âm thanh: - 7.1 CH HD Audio with Content Protection
- Realtek ALC887 Audio Codec
- Hỗ trợ Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Hỗ trợ Wake-On-LAN
- Hỗ trợ Lightning/ESD Protection (ASRock Full Spike Protection)
- Hỗ trợ LAN Cable Detection
- Hỗ trợ Energy Efficient Ethernet 802.3az
- Hỗ trợ PXE

Kết nối I/O bên trong: - 1 x Print Port Header
- 2 x COM Port Headers
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 1 x BIOS_PH Connector
- 3 x USB 2.0 Headers (hỗ trợ 5 USB 2.0 ports) (hỗ trợ ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Gen1 Header (hỗ trợ 2 USB 3.1 Gen1 ports) (hỗ trợ ESD Protection (ASRock Full Spike Protection))

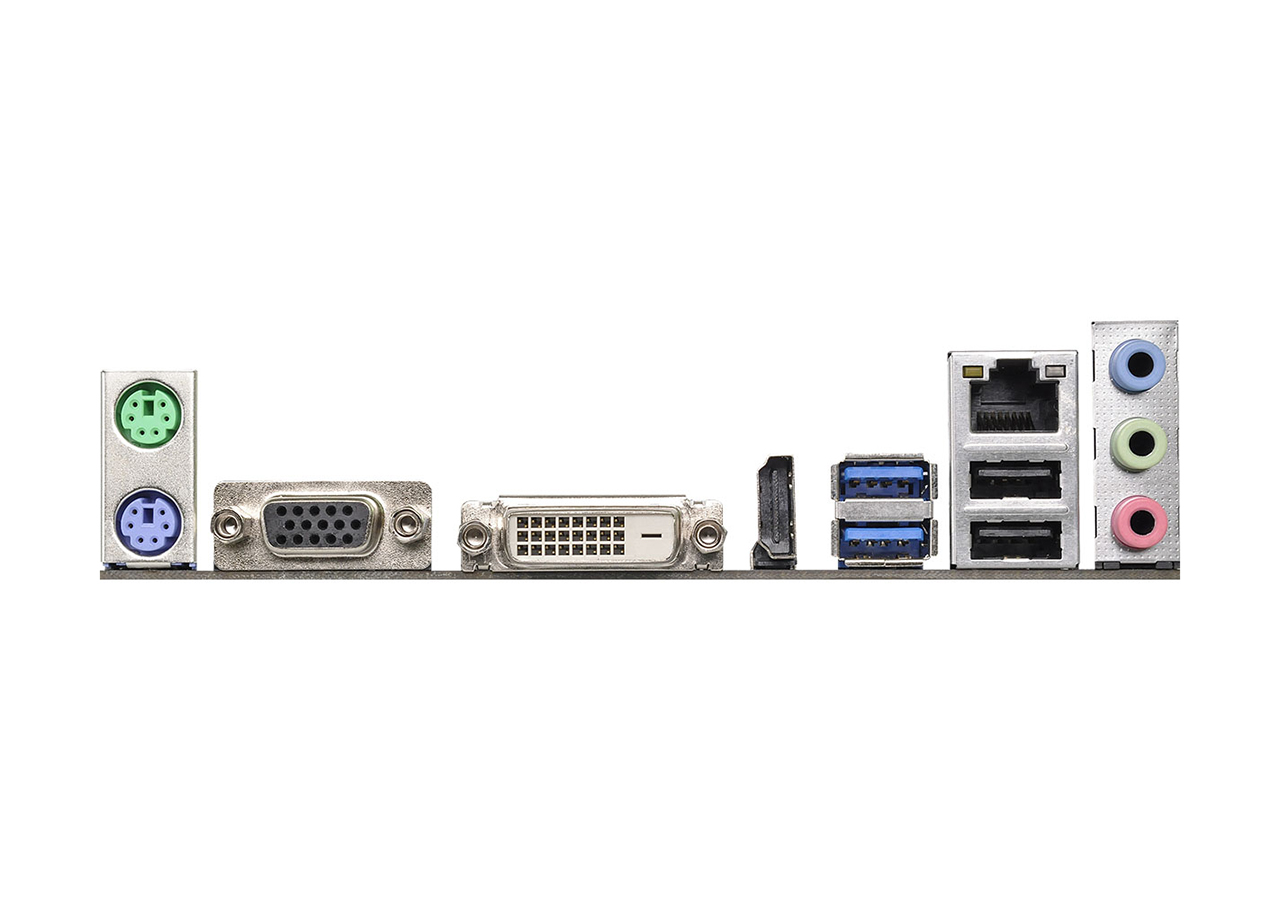

Kết nối khác: - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (hỗ trợ ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen1 Ports (hỗ trợ ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode)
- 2 x PCI Express 2.0 x1 Slots
- 2 x SATA3 6.0 Gb/s
