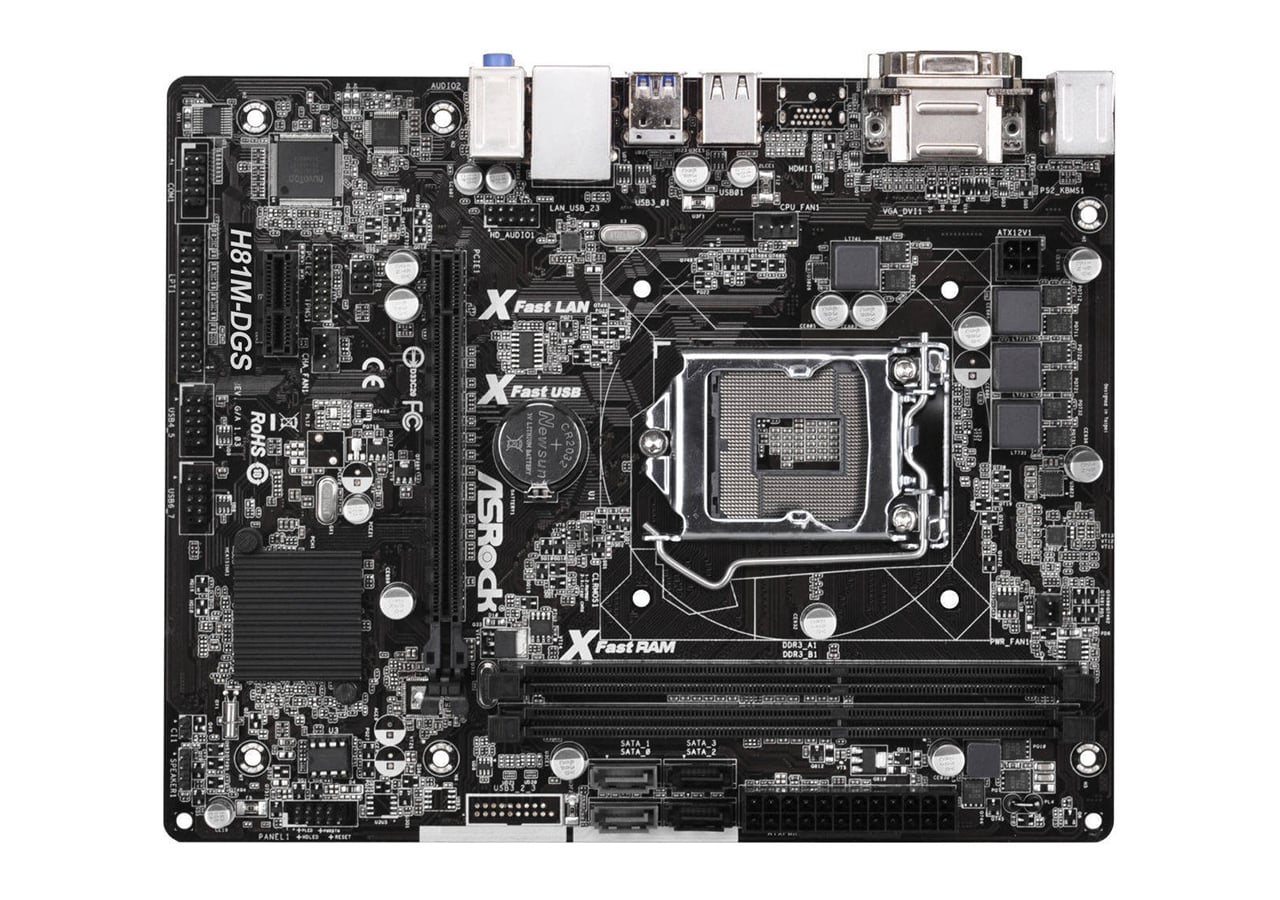

Asrock H81M-DGS

Đặc điểm CPU: - Hỗ trợ bộ vi xử lý Intel thế hệ 4/4 new Core i7/i5/i3/Pentium/Celeron (Socket 1150)
- 4 Power Phase design
- Hỗ trợ công nghệ Intel Turbo Boost 2.0

Card đồ hoạ: - Hỗ trợ đồ họa tích hợp Intel HD Graphics: Intel Quick Sync Video với AVC, MVC (S3D) và MPEG-2 Full HW Encode1, Intel InTru 3D, công nghệ Intel Clear Video HD, Intel Insider, Intel đồ hoạ HD 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Bộ nhớ chia sẻ: 512 MB
- 2 tùy chọn đầu ra đồ họa: D-Sub, DVI-D
- Hỗ trợ DVI-D, độ phân giải 1920 x 1200@60 Hz
- Hỗ trợ D-Sub, độ phân giải 1920 x 1200@60 Hz
- Hỗ trợ HDCP with DVI-D
- Hỗ trợ Full HD 1080p Blu-ray (BD) playback with DVI-D Port

RAM: - Công nghệ bộ nhớ kênh đôi DDR3/DD3L
- 2 x khe cắm DDR3/DD3L DIMM
- Hỗ trợ DDR3/DD3L 1600/1333/1066 non-ECC, un-buffered memory
- Dung lượng bộ nhớ hệ thống tối đa: 16 GB
- Hỗ trợ bộ nhớ Intel Extreme Memory Profile (XMP) 1.3/1.2

Tính năng khác: - CPU/Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

BIOS: - 32 Mb AMI UEFI Legal BIOS with Multilingual GUI support
- ACPI 1.1
- SMBIOS 2.3.1
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Khác: - ASRock APP Shop
- ASRock A-Tuning
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- ASRock USB Key
- ASRock FAN-Tastic Tuning
- Hybrid Booster:
ASRock U-COP
Boot Failure Guard (B.F.G.)
- Good Night LED

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111G
- Hỗ trợ Wake-On-LAN
- Hỗ trợ LAN Cable Detection
- Hỗ trợ Energy Efficient Ethernet 802.3az
- Hỗ trợ PXE

Kết nối I/O bên trong: - 1 x IR Header
- 1 x Print Port Header
- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (hỗ trợ 4 USB 2.0 ports)

Kết nối khác: - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x USB 2.0 Ports
- 2 x USB 3.1 Gen1 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
- 1 x PCI Express 2.0 x1 Slot
- 2 x SATA3 6.0 Gb/s
- 2 x SATA2 3.0 Gb/s
