Nền tảng
- Hệ điều hành
- Windows
- Đặc điểm CPU
- - Hỗ trợ Socket FM2+ 95W / FM2 100W processors
- Chipset
- AMD A88X (Bolton-D4)
- Hãng sản xuất CPU
- AMD
- Card đồ hoạ
-
- Tích hợp AMD Radeon R7/R5 Series Graphics in A-series APU
- DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
- Bộ nhớ chia sẻ tối đa: 2 GB
- Đồ họa kép: hỗ trợ DVI-D and D-Sub
- Hỗ trợ Dual-link DVI-D, độ phân giải 2560 x 1600@60 Hz
- Hỗ trợ D-Sub, độ phân giải 1920 x 1200@60 Hz
- Hỗ trợ AMD Steady Video 2.0: New video post processing capability for automatic jitter reduction on home/online video
- Hỗ trợ HDCP with DVI-D Port
- Hỗ trợ Full HD 1080p Blu-ray (BD) playback with DVI-D Port
Lưu trữ
- RAM
-
- Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory
- Bộ nhớ hệ thống chia sẻ tối đa: 32 GB
- Hỗ trợ Intel Extreme Memory Profile (XMP) 1.3 / 1.2
- Hỗ trợ AMD Memory Profile Technology (AMP) up to AMP 2400
Màn hình
- Tính năng khác
-
- CPU temperature sensing
- Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, Vcore
Tính năng
- BIOS
-
- 64 Mb AMI UEFI Legal BIOS with GUI
- Hỗ trợ Plug and Play
- ACPI 1.1 Compliant wake up events
- Hỗ trợ jumperfree
- SMBIOS 2.3.1
- DRAM, CPU Voltage multi-adjustment
- Khác
-
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
- ASRock X-Boost
- ASRock Interactive UEFI
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
- ASRock Full Spike Protection
- ASRock Cloud
- ASRock APP Shop
- Hệ điều hành: Microsoft Windows 8.1 32-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
Âm thanh
- Đặc điểm âm thanh
-
- 5.1 CH HD Audio
- Realtek ALC662 Audio Codec
- TI NE5532 Premium Headset Amplifier (hỗ trợ up to 600 ohm headsets)
- Hỗ trợ Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
Kết nối
- LAN
-
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Hỗ trợ Wake-On-WAN
- Hỗ trợ Wake-On-LAN
- Hỗ trợ Lightning/ESD Protection (ASRock Full Spike Protection)
- Hỗ trợ LAN Cable Detection
- Hỗ trợ Energy Efficient Ethernet 802.3az
- Hỗ trợ PXE
- Kết nối I/O bên trong
-
- 1 x IR Header
- 1 x COM Port Header
- 1 x SPDIF Out Connector
- 1 x Power LED Header
- 1 x CPU Fan Connector (4-pin)
- 2 x Chassis Fan Connectors (2 x 4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (hỗ trợ 4 USB 2.0 ports) (hỗ trợ ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Gen1 Header by AMD A88X (Bolton-D4) (hỗ trợ 2 USB 3.1 Gen1 ports) (hỗ trợ ESD Protection (ASRock Full Spike Protection))
- USB
-
- 2.0
- 3.1
- Kết nối khác
-
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x USB 2.0 Ports (hỗ trợ ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen1 Ports (AMD A88X (Bolton-D4)) (hỗ trợ ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- 1 x PCI Express 3.0 x16 Slot (PCIE2 x16 mode)
- 1 x PCI Express 2.0 x16 Slot (PCIE5 x4 mode)
- 3 x PCI Express 2.0 x1 Slots
- 2 x PCI Slots
- Hỗ trợ AMD Quad CrossFireX, CrossFireX and Dual Graphics
- 8 x SATA3 6.0 Gb/s
Thông tin chung

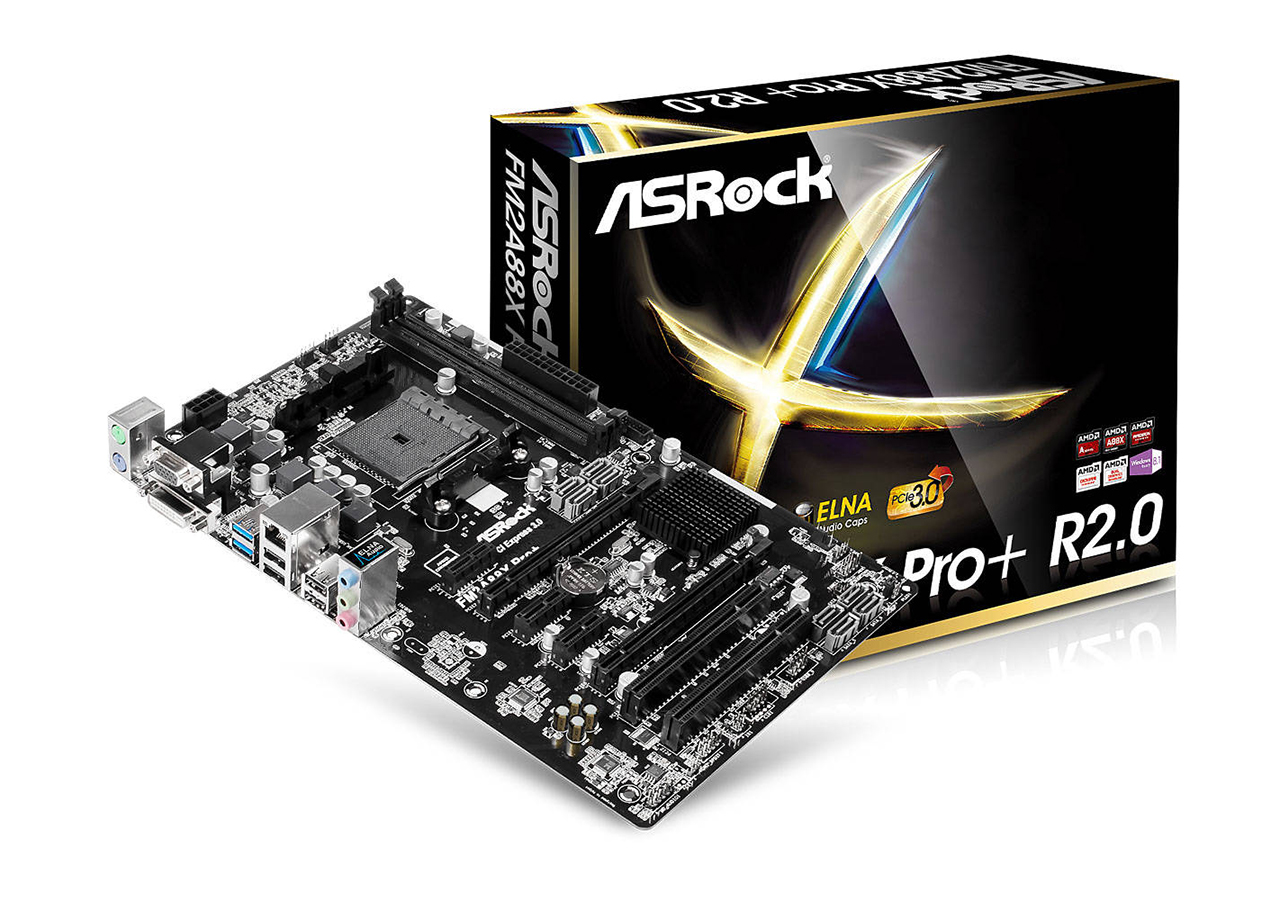

- Nhà sản xuất
- Asrock
- Loại máy
- Bo mạch chủ
