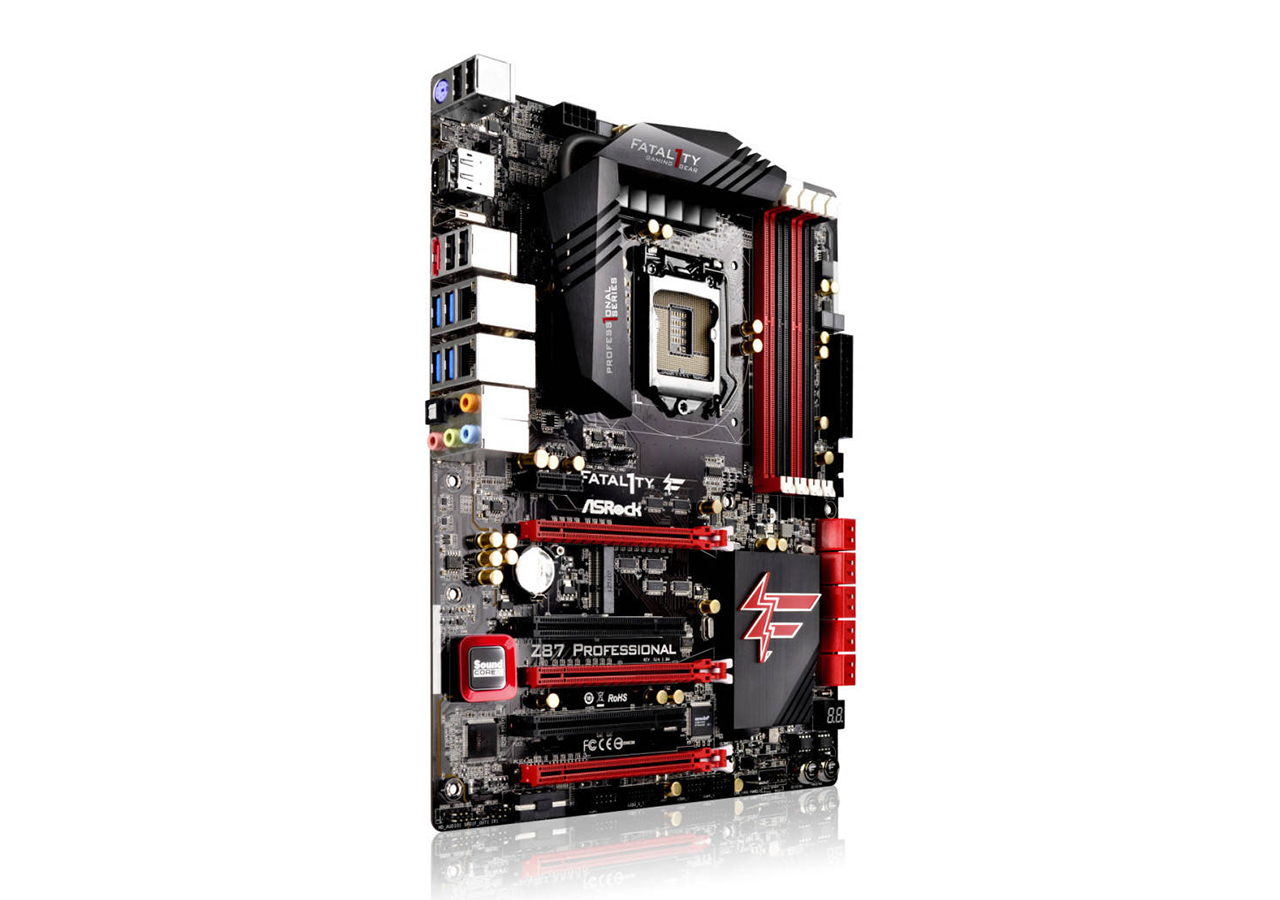

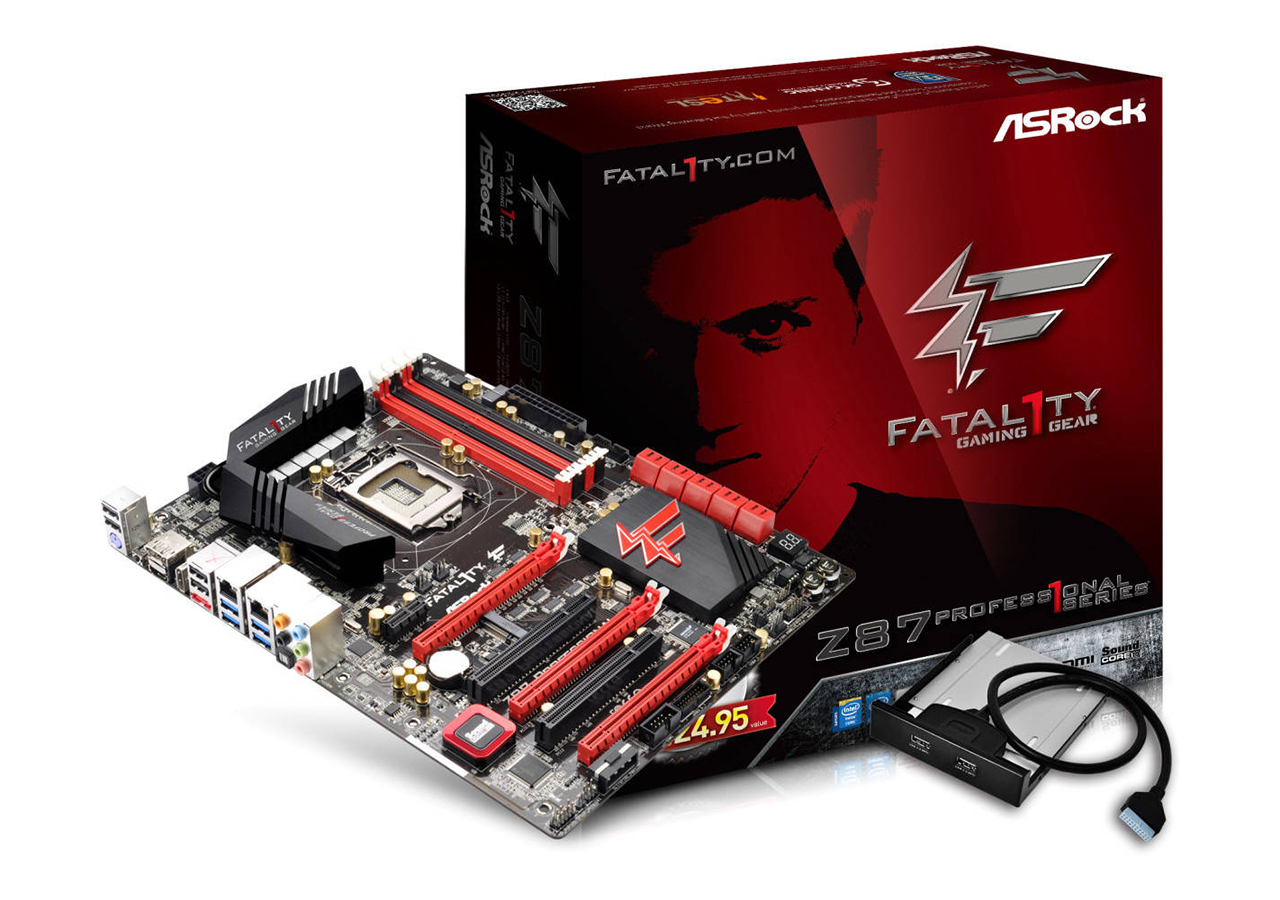

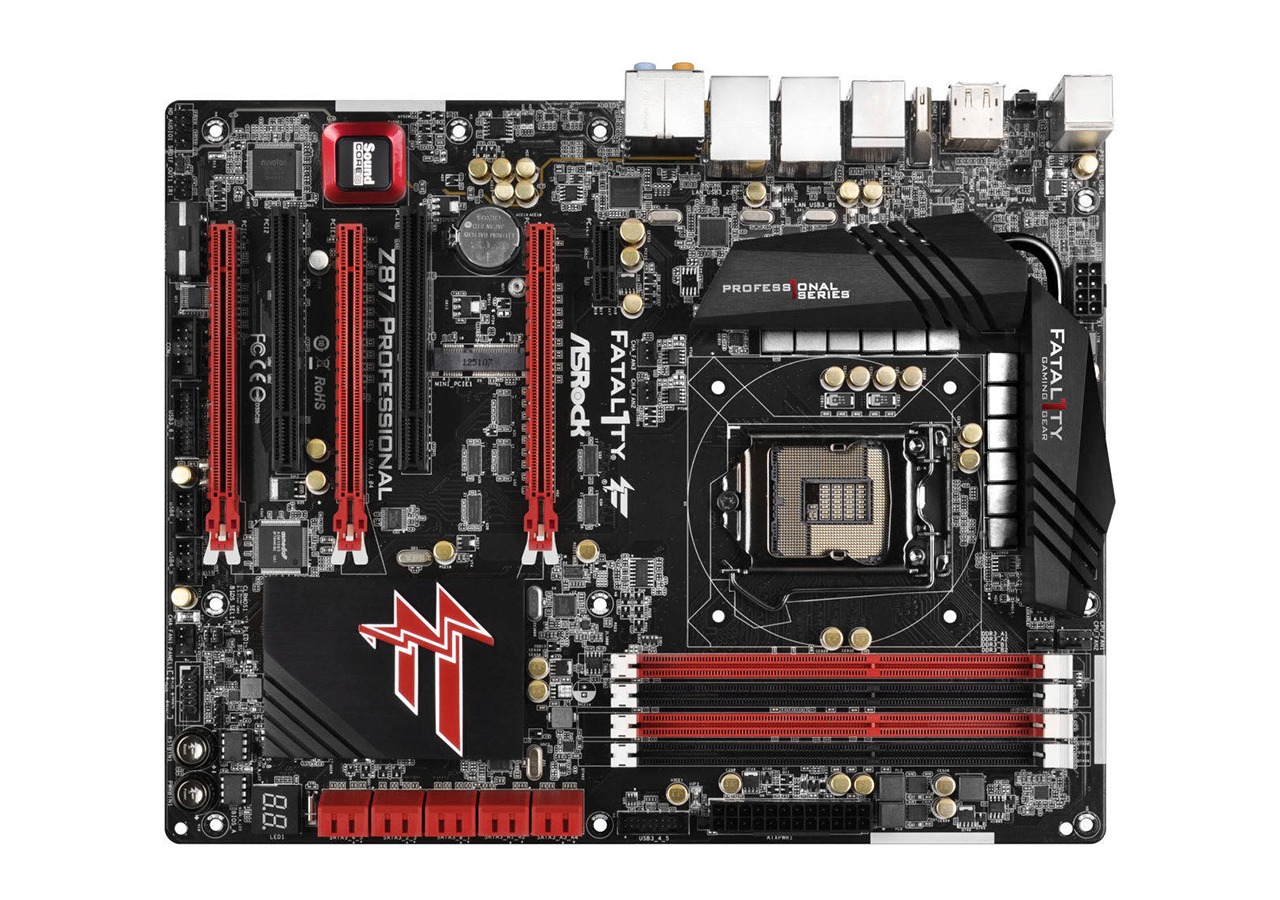

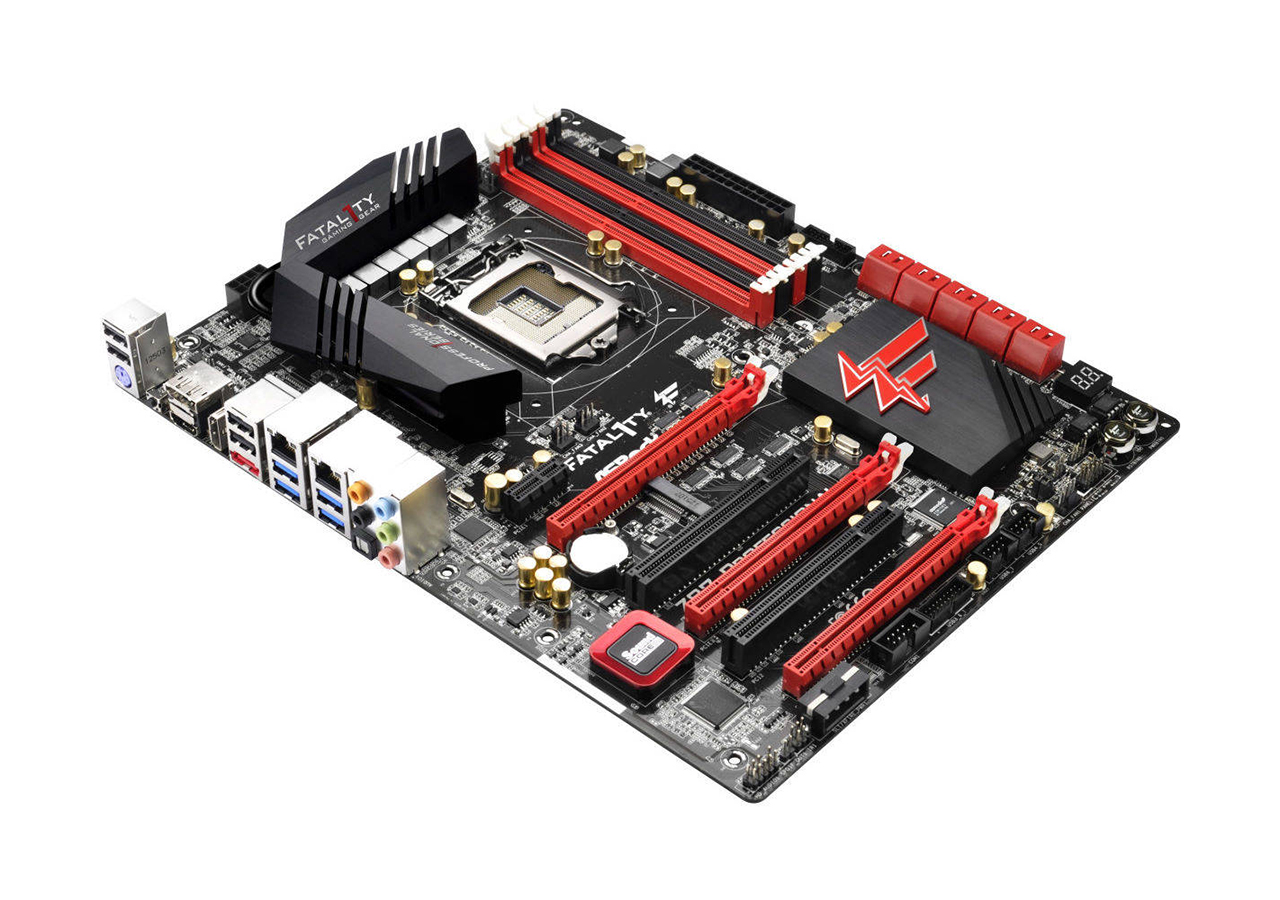

Asrock Fatal1ty Z87 Professional

Đặc điểm CPU: - Hỗ trợ bộ vi xử lý Intel thế hệ 4/4 new Core i7/i5/i3/Pentium/Celeron (Socket 1150)
- Thiết kế Digi Power
- Thiết kế 12 Power Phase
- Hỗ trợ ASRock BCLK Full-range Overclocking
- Hỗ trợ Intel K-series CPU mở khóa
- Hỗ trợ công nghệ Intel Turbo Boost 2.0

Card đồ hoạ: - Hỗ trợ đồ họa tích hợp Intel HD Graphics: Intel Quick Sync Video với AVC, MVC (S3D) và MPEG-2 Full HW Encode1, Intel InTru 3D, Công nghệ Intel Clear Video HD, Intel Insider, Intel đồ hoạ HD 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Bộ nhớ chia sẻ tối đa 512 MB
- Kết nối VGA kép: hỗ trợ cổng HDMI và DisplayPort
- Hỗ trợ công nghệ HDMI, độ phân giải 4K x 2K (4096 x 2304)@24 Hz
- Hỗ trợ công nghệ DisplayPort, độ phân giải 4K x 2K (4096 x 2304)@24 Hz
- Hỗ trợ chức năng HDCP với cổng HDMI và DisplayPort
- Hỗ trợ Full HD 1080p Blu-ray (BD) playback with HDMI and DisplayPort ports

RAM: - Công nghệ bộ nhớ kênh đôi DDR3/DDR3L
- 4 x khe cắm DDR3/DDR3L DIMM
- Hỗ trợ DDR3/DDR3L 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Dung lượng bộ nhớ hệ thống tối đa: 32 GB
- Hỗ trợ bộ nhớ Intel Extreme Memory Profile (XMP) 1.3/1.2

Tính năng khác: - CPU/Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

BIOS: - 2 x 64 Mb AMI UEFI Legal BIOS with Multilingual GUI
- Hỗ trợ Secure Backup UEFI Technology
- ACPI 1.1
- SMBIOS 2.3.1
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Khác: - ASRock F-Stream
- ASRock APP Shop
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- ASRock USB Key
- ASRock Key Master
- ASRock Home Cloud
- ASRock FAN-Tastic Tuning
- Hybrid Booster:
CPU Frequency Stepless Control
ASRock U-COP
Boot Failure Guard (B.F.G.)
- Good Night LED

Đặc điểm âm thanh: - 7.1 CH HD Audio
- Creative Sound Core3D quad-core sound and voice processor
- Hỗ trợ SBX Pro Studio
- Hỗ trợ CrystalVoice
- Hỗ trợ Scout Mode
- Hỗ trợ EAX1.0 to EAX5.0
- Premium Headset Amplifier (PHA)

LAN: - Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel I217V, 1 x GigaLAN Intel I211AT
- Hỗ trợ Intel Remote Wake Technology (on Intel I217V)
- Hỗ trợ Wake-On-LAN
- Hỗ trợ Dual LAN with Teaming
- Hỗ trợ Energy Efficient Ethernet 802.3az
- Hỗ trợ PXE

Kết nối I/O bên trong: - 1 x IR header
- 1 x COM Port header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 1 x 24 pin ATX power connector
- 1 x 8 pin 12V power connector
- 1 x SLI/XFire power connector
- 1 x Front panel audio connector
- 1 x SPDIF Out connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports)
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED

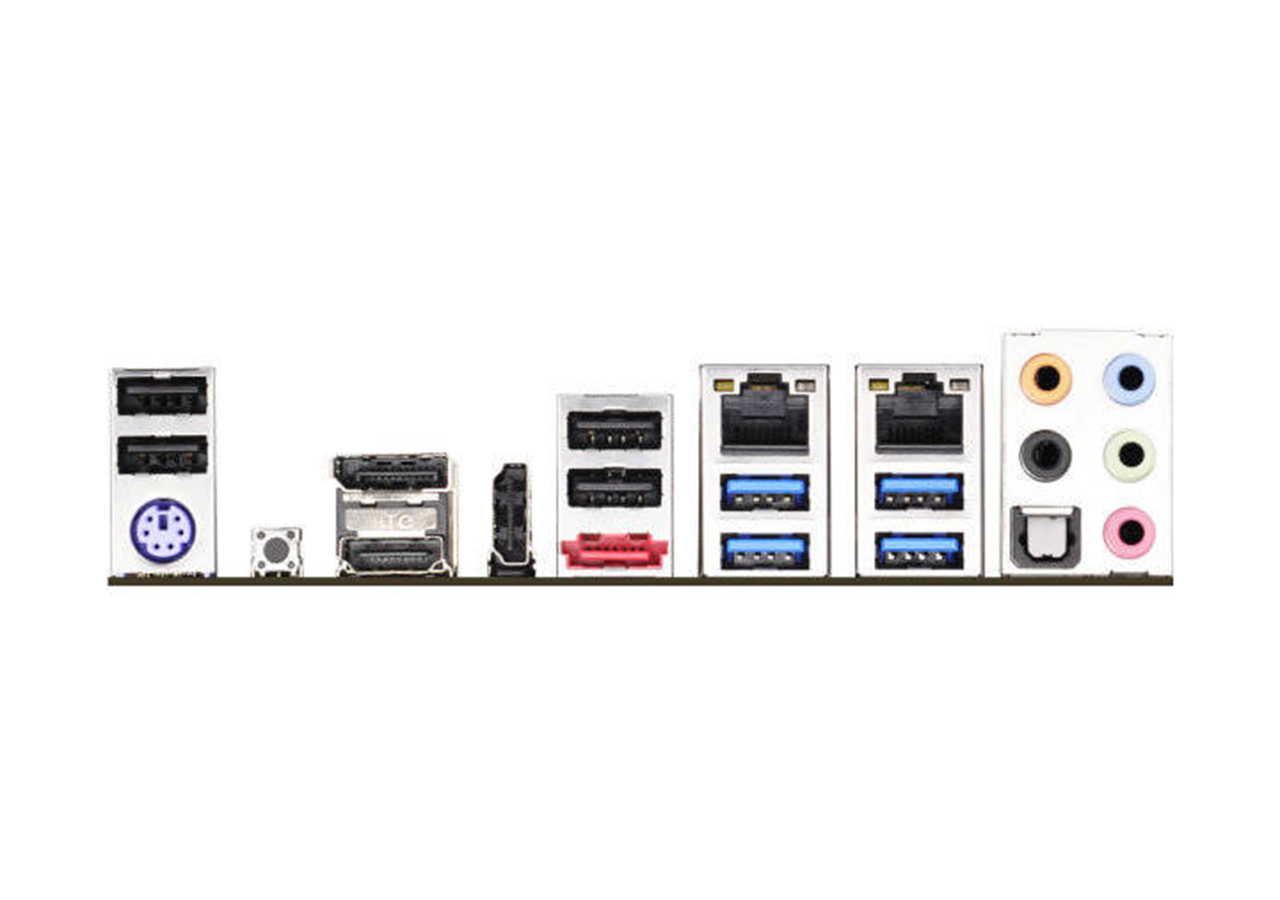

Kết nối khác: - 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI-Out Port
- 1 x HDMI-In Port
- 1 x DisplayPort
- 1 x Optical SPDIF Out Port
- 1 x eSATA Connector
- 3 x USB 2.0 Ports
- 1 x Fatal1ty Mouse Port (USB 2.0)
- 4 x USB 3.1 Gen1 Ports (ASMedia Hub)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
- 3 x PCI Express 3.0 x16 slots (PCIE2/PCIE3/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3); triple at x8 (PCIE2) / x4 (PCIE3) / x4 (PCIE4))
- 1 x PCI Express 2.0 x1 slot
- 1 x mini-PCI Express slot
- 2 x PCI slots
- Hỗ trợ AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- Hỗ trợ NVIDIA Quad SLI and SLI
- 6 x SATA3 6.0
- 4 x SATA3 6.0
- 1 x eSATA
