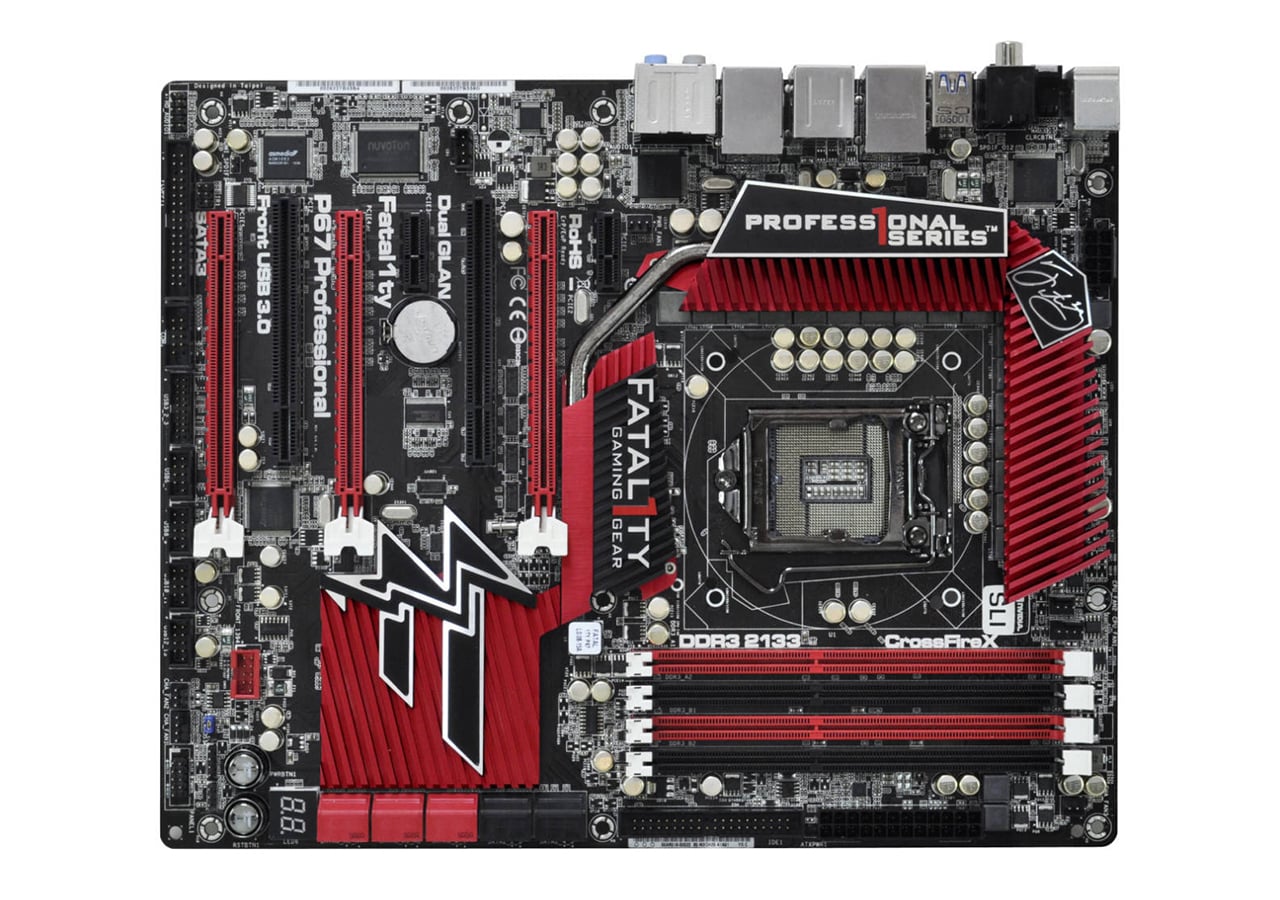

Asrock Fatal1ty P67 Professional

Đặc điểm CPU: - Hỗ trợ 3rd and 2nd Generation Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1155 Package
- Advanced V16 + 2 Power Phase Design
- Hỗ trợ Intel Turbo Boost 2.0 Technology
- Hỗ trợ Intel K-Series unlocked CPU
- Hỗ trợ Hyper-Threading Technology

RAM: - Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Hỗ trợ DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32 GB
- Hỗ trợ Intel Extreme Memory Profile (XMP)

Tính năng khác: - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU or MB Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

BIOS: - Hỗ trợ 64 Mb AMI UEFI Legal BIOS with GUI
- Hỗ trợ "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Hỗ trợ jumperfree
- SMBIOS 2.3.1
- DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment

Khác: - F-Stream
- Instant Boot
- Instant Flash
- APP Charger
- Hybrid Booster:
CPU Frequency Stepless Control
ASRock U-COP
Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Hệ điều hành: Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant

Đặc điểm âm thanh: - 7.1 CH HD Audio
- Realtek ALC892 Audio Codec
- Hỗ trợ Premium Blu-ray audio

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Hỗ trợ Wake-On-LAN
- Hỗ trợ LAN Cable Detection
- Hỗ trợ Energy Efficient Ethernet 802.3az
- Hỗ trợ Dual LAN with Teaming function
- Hỗ trợ PXE

Kết nối I/O bên trong: - 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 4 x USB 2.0 headers (hỗ trợ 8 USB 2.0 ports)
- 1 x USB 3.1 Gen1 header (hỗ trợ 2 USB 3.1 Gen1 ports)
- 1 x Dr. Debug with LED

Kết nối khác: - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 3 x Ready-to-Use USB 2.0 Ports
- 1 x Fatal1ty Mouse Port (USB 2.0)
- 1 x eSATA3 Connector
- 4 x Ready-to-Use USB 3.1 Gen1 Ports
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
- 3 x PCI Express 2.0 x16 slots
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Hỗ trợ ATI Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- Hỗ trợ NVIDIA Quad SLI and SLI
- 4 x SATA2 3.0 Gb/s
- 6 x SATA3 6.0 Gb/s
- 1 x ATA133 IDE
