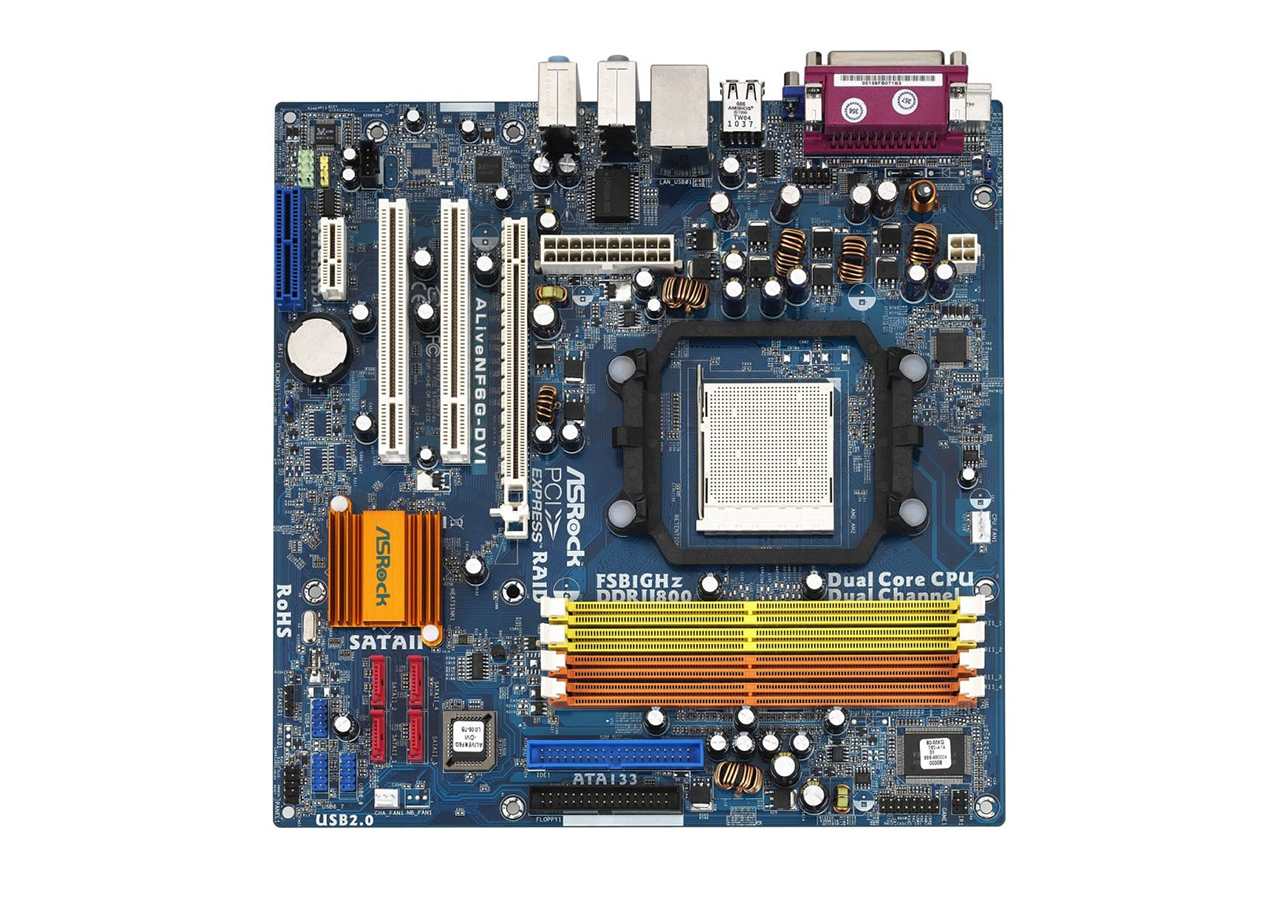

Asrock ALiveNF6G-DVI

Đặc điểm CPU: - Socket AM2 for AMD Athlon 64FX / 64X2 / 64 and Sempron processors
- AMD LIVE! Ready
- Hỗ trợ AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Hỗ trợ Untied Overclocking Technology
- Hỗ trợ Hyper-Transport Technology

Card đồ hoạ: - Tích hợp NVIDIA GeForce6-class graphics
- DX9.0 VGA, Pixel Shader 3.0
- Bộ nhớ chia sẻ tối đa: 256 MB
- Đồ họa kép: hỗ trợ D-Sub and DVI-D

RAM: - Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Hỗ trợ DDR2 800/667/533 non-ECC, un-buffered memory
- Bộ nhớ hệ thống tối đa: 8 GB

Tính năng khác: - CPU Internal Temperature Sensing
- CPU Ambient Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

BIOS: - 4Mb AMI BIOS
- AMI Legal BIOS
- Hỗ trợ Plug and Play
- ACPI 1.1 Compliance Wake Up Events
- Hỗ trợ Jumperfree
- SMBIOS 2.3.1

Khác: - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
- Hệ điều hành: Microsoft Windows 2000 / XP / XP Media Center / XP 64-bit / Vista / Vista 64-bit compliant

Đặc điểm âm thanh: - 7.1 CH Windows Vista Premium Level HD Audio
- ALC888 Audio Codec

LAN: - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211B
- Hỗ trợ Wake-On-LAN
- Hỗ trợ PXE

Kết nối I/O bên trong: - 4 x SATA2 3.0 Gb/s connectors, hỗ trợ RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, and Hot Plug functions
- 1 x ATA133 IDE connector (hỗ trợ 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (hỗ trợ 6 USB 2.0 ports)

Kết nối khác: - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
- 2 x PCI slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 1 x HDMR slot
