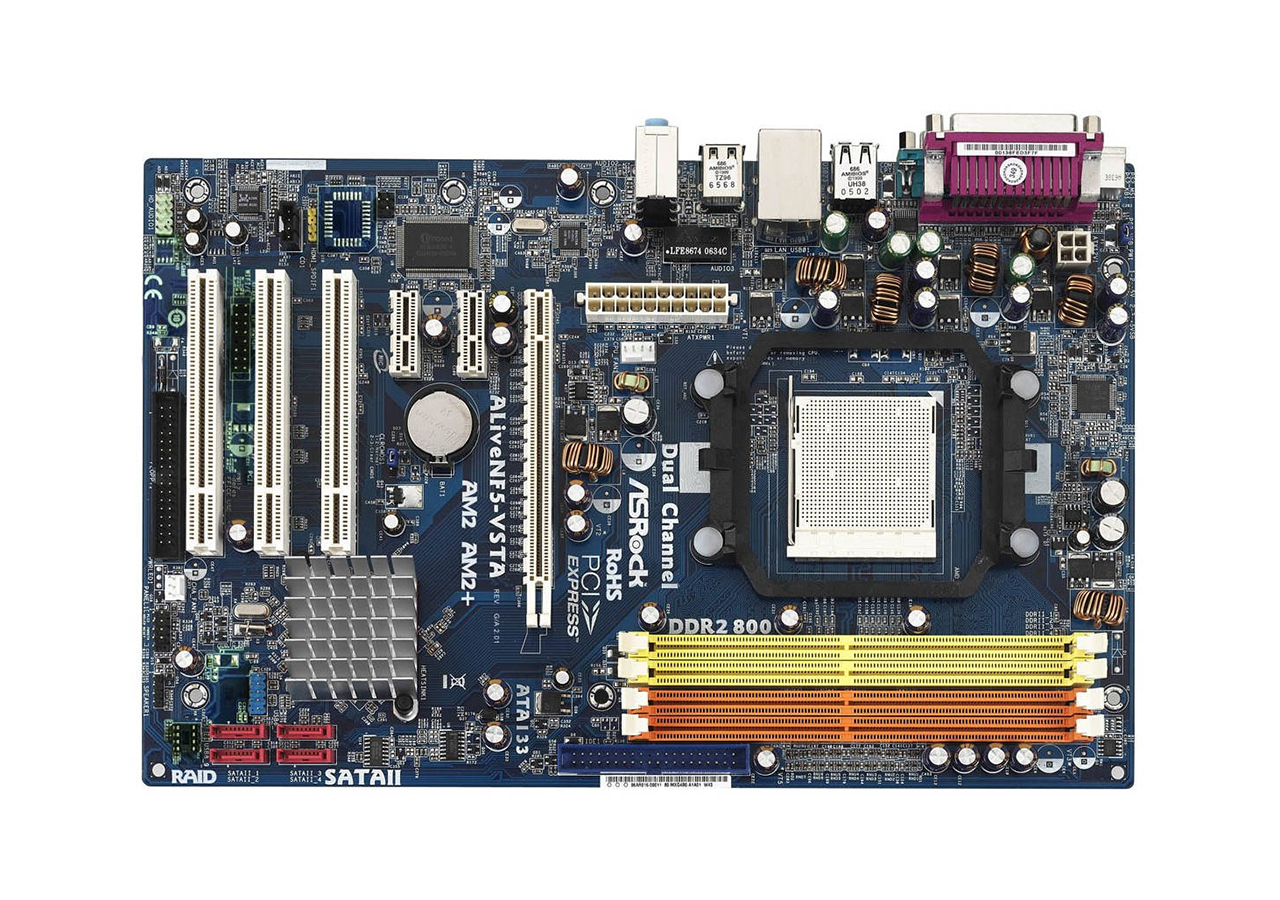

Asrock ALiveNF5-VSTA R2.0

Đặc điểm CPU: - Hỗ trợ for Socket AM2+ / AM2 processors: AMD Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- AMD LIVE! Ready
- Hỗ trợ AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Hỗ trợ Untied Overclocking Technology
- Hỗ trợ Hyper-Transport Technology

RAM: - Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Hỗ trợ DDR2 1066/800/667/533 non-ECC, un-buffered memory
- Bộ nhớ hệ thống tối đa: 16 GB

Tính năng khác: - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

BIOS: - 4 Mb AMI BIOS
- AMI Legal BIOS
- Hỗ trợ Plug and Play
- ACPI 1.1 Compliance Wake Up Events
- Hỗ trợ Jumperfree
- SMBIOS 2.3.1

Khác: - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
- Hệ điều hành: Microsoft Windows 2000 / XP / XP Media Center / XP 64-bit / Vista / Vista 64-bit compliant

Đặc điểm âm thanh: - 5.1 CH Windows Vista Premium Level HD Audio
- ALC662VD Audio Codec

LAN: - Realtek PHY RTL8201CL
- Speed: 10/100 Ethernet
- Hỗ trợ Wake-On-LAN
- Hỗ trợ PXE

Kết nối I/O bên trong: - 4 x SATA2 3.0 Gb/s connectors, hỗ trợ RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug functions
- 1 x ATA133 IDE connector (hỗ trợ 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 1 x USB 2.0 header (hỗ trợ 2 USB 2.0 ports)
- 1 x WiFi/E header

Kết nối khác: - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP support)
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
- 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots
- 3 x PCI slots
