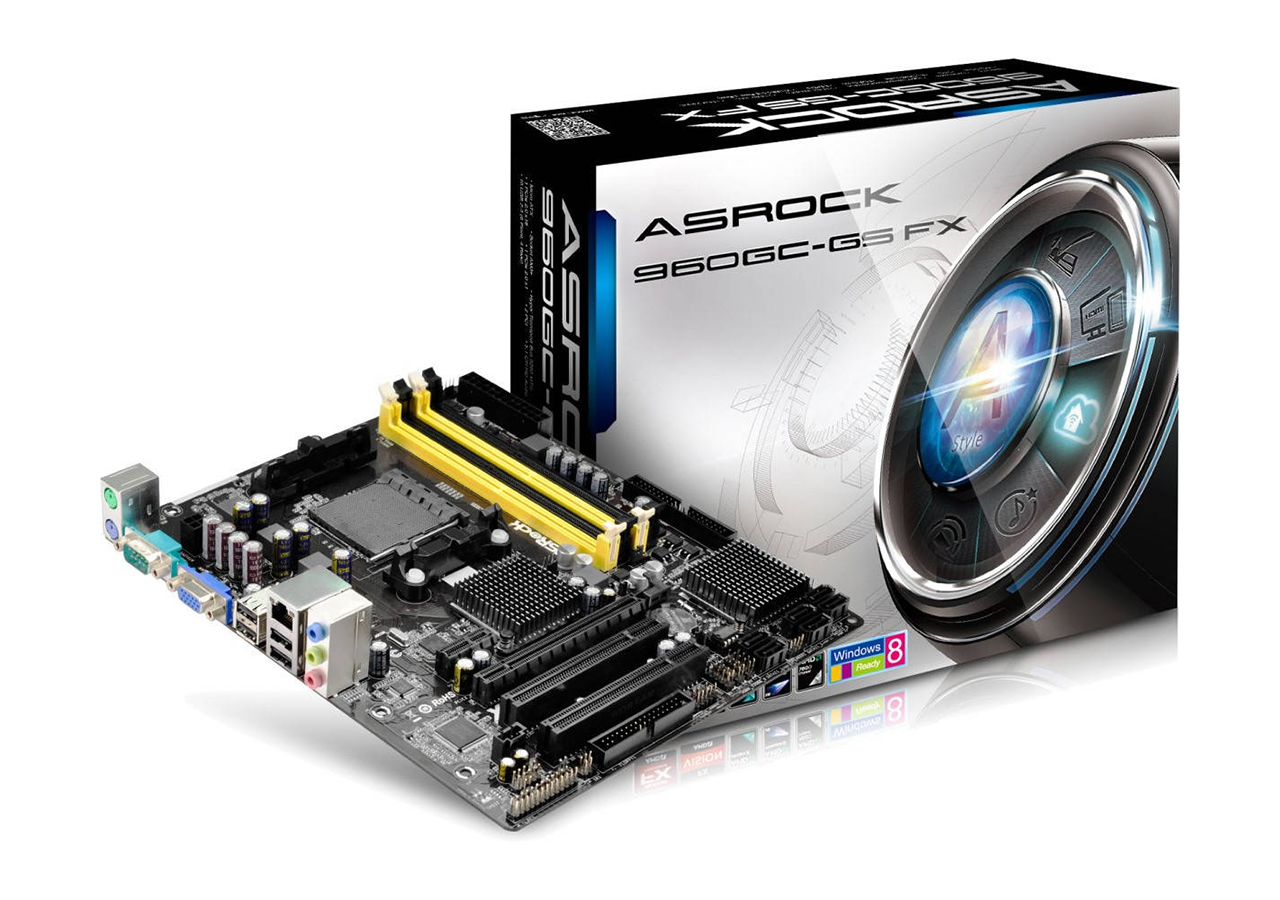

Asrock 960GC-GS FX

Đặc điểm CPU: - Hỗ trợ up to 95W Socket AM3+ processors
- Hỗ trợ for Socket AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- Digi Power Design
- Hỗ trợ CPU up to 140W
- Hỗ trợ AMD OverDrive with ACC feature (Advanced Clock Calibration)
- Hỗ trợ AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Hỗ trợ Untied Overclocking Technology
- Hỗ trợ Hyper-Transport 3.0 (HT 3.0) Technology

RAM: - Dual Channel DDR3/DDR2 Memory Technology
- 2 x DDR3 DIMM Slots
- Hỗ trợ DDR3 1866(OC)/1600(OC)/1333/1066 non-ECC, un-buffered memory
- Bộ nhớ hệ thống chia sẻ tối đa: 16 GB
- 2 x DDR2 DIMM Slots
- Hỗ trợ DDR2 1066/800/667/533 non-ECC, un-buffered memory
- Bộ nhớ hệ thống chia sẻ tối đa: 8 GB

Tính năng khác: - CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU Fan multi-speed control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

BIOS: - 16 Mb AMI Legal BIOS
- Hỗ trợ Plug and Play
- ACPI 1.1 Compliance Wake Up Events
- Hỗ trợ jumperfree
- SMBIOS 2.3.1
- CPU, VCCM, NB Voltage Multi-adjustment

Khác: - ASRock OC Tuner
- ASRock Intelligent Energy Saver
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock X-Boost
- Hybrid Booster:
CPU Frequency Stepless Control
ASRock U-COP
Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
- Hệ điều hành: Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit compliant

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111G
- Hỗ trợ Wake-On-LAN
- Hỗ trợ LAN Cable Detection
- Hỗ trợ Energy Efficient Ethernet 802.3az
- Hỗ trợ PXE

Kết nối I/O bên trong: - 1 x Floppy Connector
- 1 x IR Header
- 1 x Print Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x CD In Header
- 1 x Front Panel Audio Connector
- 1 x SPDIF Out Connector
- 3 x USB 2.0 Headers (hỗ trợ 6 USB 2.0 ports)

Kết nối khác: - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
- 1 x PCI Express 2.0 x16 slot (PCIE3 x16 mode)
- 3 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- 6 x SATA2 3.0 Gb/s
- 1 x ATA133 IDE
