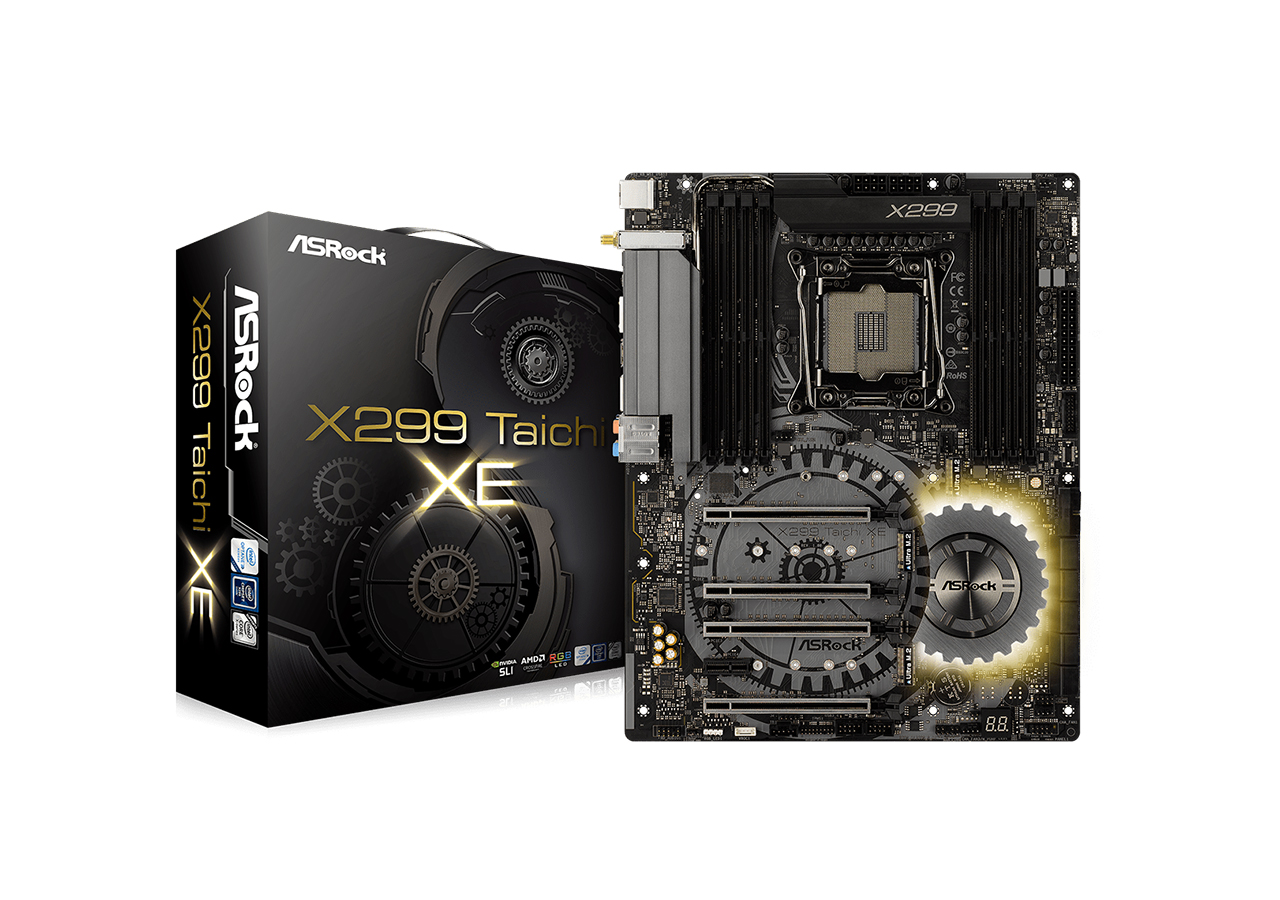

Asrock X299 Taichi XE

Asrock X299 Taichi XE

-

Nền tảng

Hệ điều hành
Windows
Đặc điểm CPU
- Hỗ trợ Intel Core X-Series Processor Family for the LGA 2066 Socket
- Digi Power design
- 13 Power Phase design
- Hỗ trợ Intel Turbo Boost Max Technology 3.0
- Hỗ trợ ASRock Hyper BCLK Engine III
Chipset
Intel X299

Lưu trữ

RAM
- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Hỗ trợ DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Hỗ trợ non-ECC RDIMM (Registered DIMM)
- Tối đa 128 GB
- Hỗ trợ Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

Tính năng

BIOS
- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI hỗ trợ (1 x Main BIOS and 1 x Backup BIOS)
- Hỗ trợ Secure Backup UEFI Technology
- ACPI 6.1 Compliant wake up events
- SMBIOS 3.0 Support
- CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment

Kết nối

LAN
- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
- Hỗ trợ Wake-On-LAN
- Hỗ trợ Lightning/ESD Protection
- Hỗ trợ Dual LAN with Teaming*
- Hỗ trợ Energy Efficient Ethernet 802.3az
- Hỗ trợ PXE
Kết nối I/O bên trong
- 4 x PCI Express 3.0 x16 Slots
- 1 x PCI Express 2.0 x1 Slot
- Hỗ trợ AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- Hỗ trợ NVIDIA Quad SLI, 3-Way SLI and SLI
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
- 8 x SATA3 6.0 Gb/s Connectors, hỗ trợ RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, hỗ trợ NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_2), hỗ trợ M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 2 x Ultra M.2 Sockets (M2_1 and M2_3), hỗ trợ M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x Virtual RAID On CPU Header
- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 1 x Dr. Debug with LED
Wifi
Wi-Fi 802.11 a/b/g/n/ac, dual-band
Bluetooth
4.2
USB
- 2 x USB 2.0 Ports (Hỗ trợ ESD Protection)
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Hỗ trợ ESD Protection)*
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Hỗ trợ ESD Protection)*
- 4 x USB 3.1 Gen1 Ports (Hỗ trợ ESD Protection)
- 2 x USB 2.0 Headers (Hỗ trợ 4 USB 2.0 ports) (Hỗ trợ ESD Protection)
- 2 x USB 3.1 Gen1 Headers (hỗ trợ 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (hỗ trợ ESD Protection)
Kết nối khác
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Hỗ trợ Surge Protection
- Hỗ trợ Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Impedance Sensing on Front Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports DTS Connect
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Thông tin chung

Nhà sản xuất
Asrock
Kích thước
30,5 x 24,4 cm
Loại máy
Bo mạch chủ
